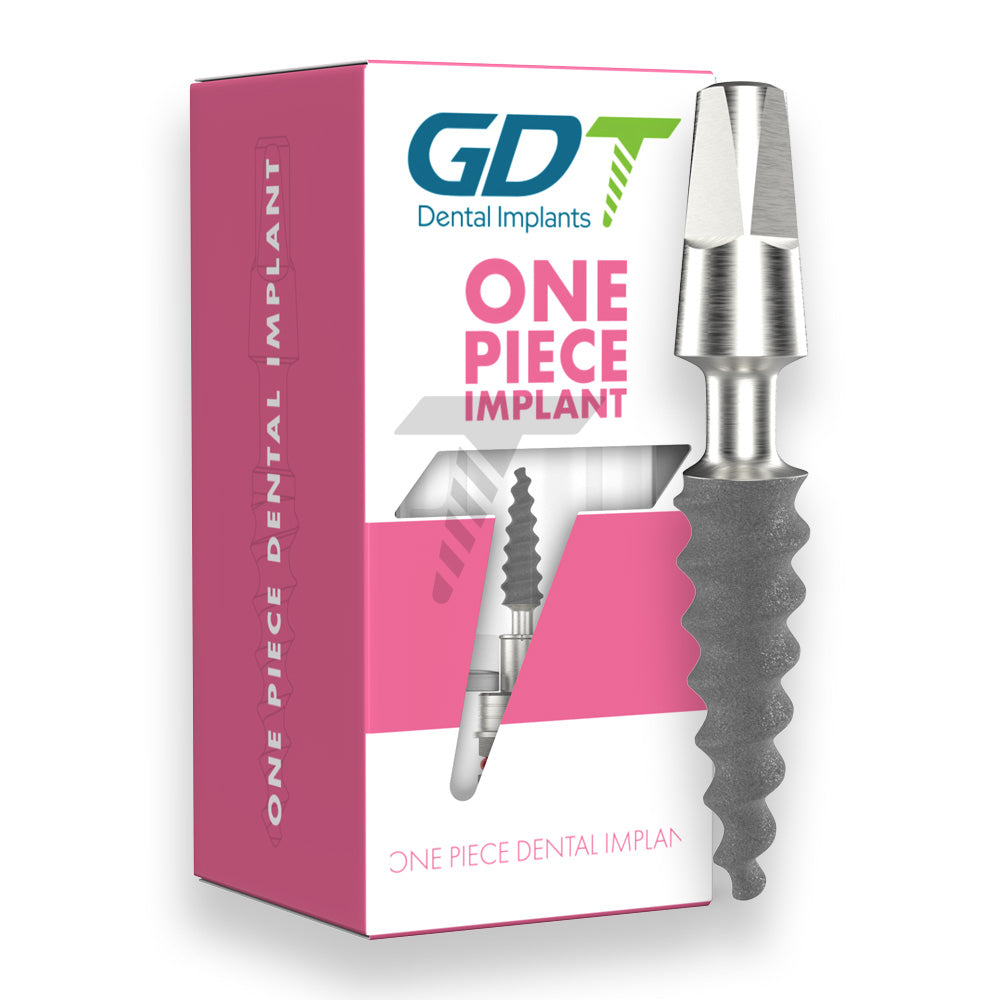

OPIB - Flexible Neck One Piece Implant

# Implant Diameters: 3.3mm, 3.75mm, 4.2mm, 5.0mm
# Implant Length: 6.0mm, 8.0mm, 10.0mm, 11.5mm, 13.0mm and 16.0mm
# Surface Treatment: RBM - Resorbable Blast Media, Calcium Phosphate.

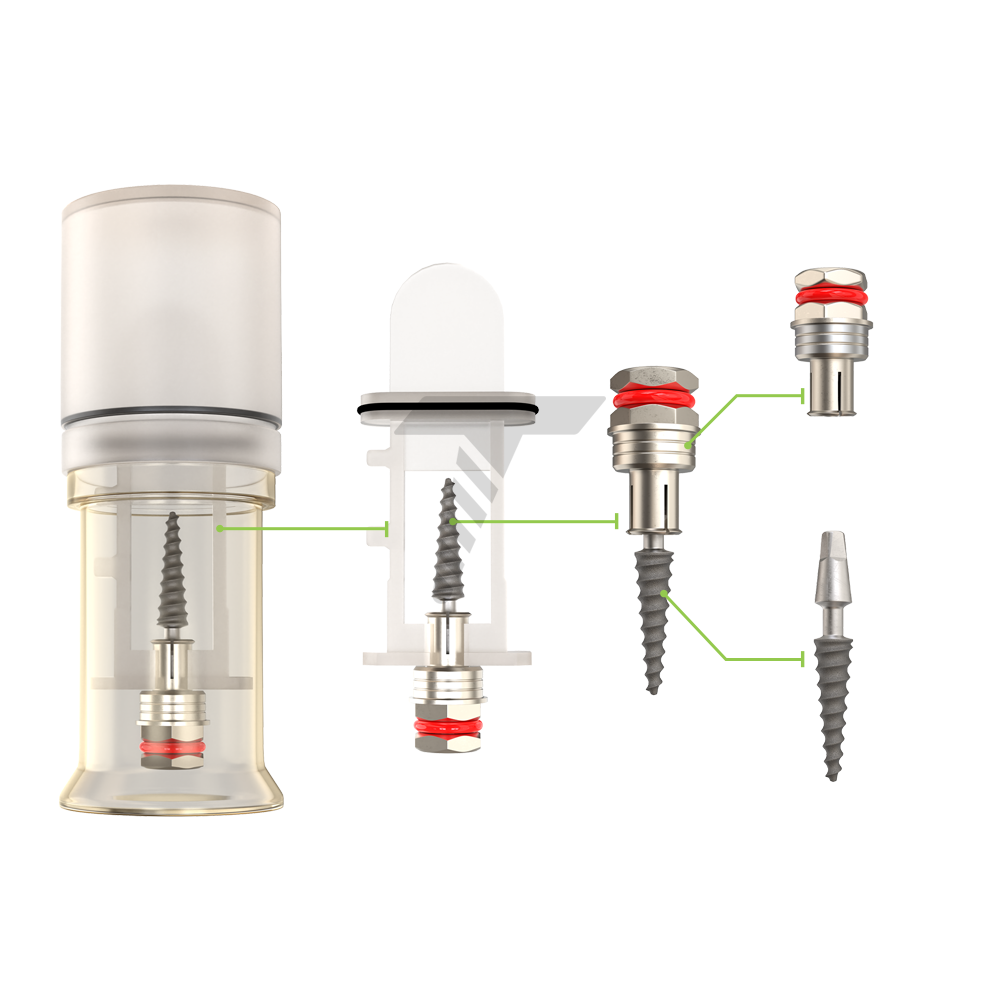

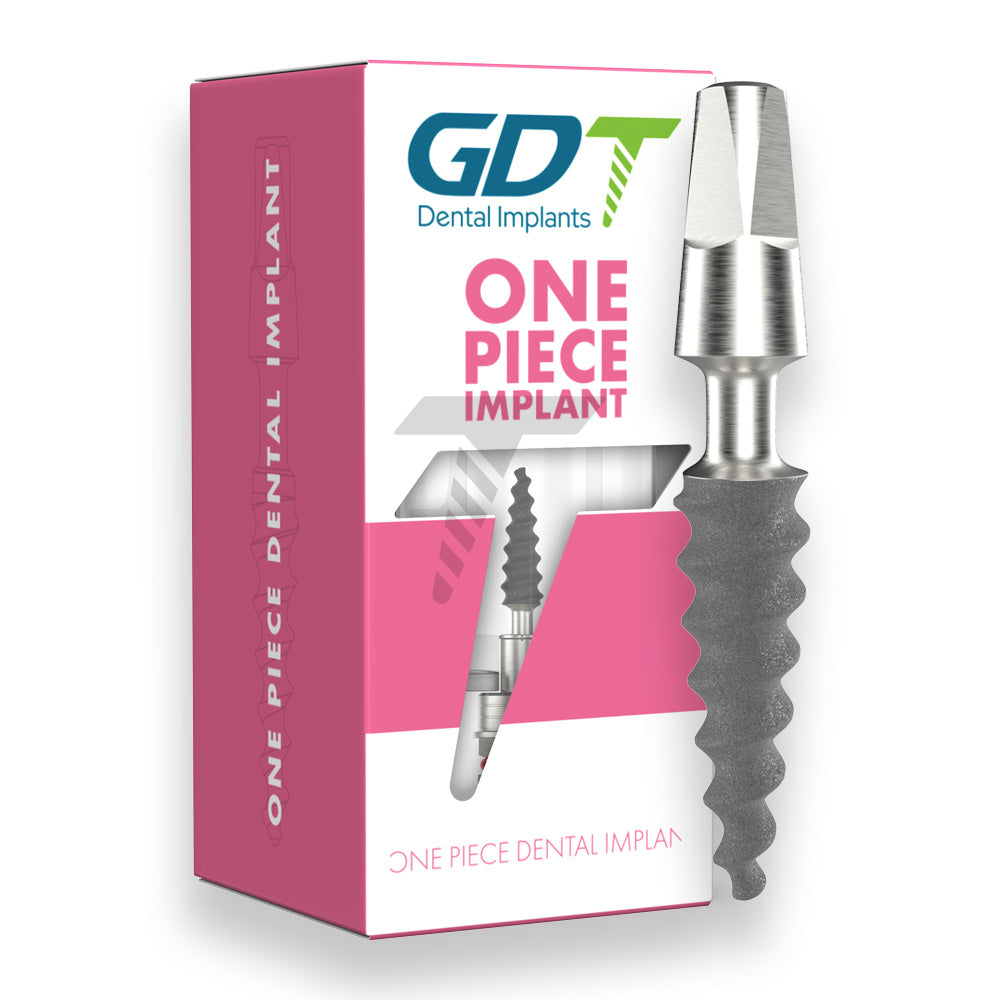

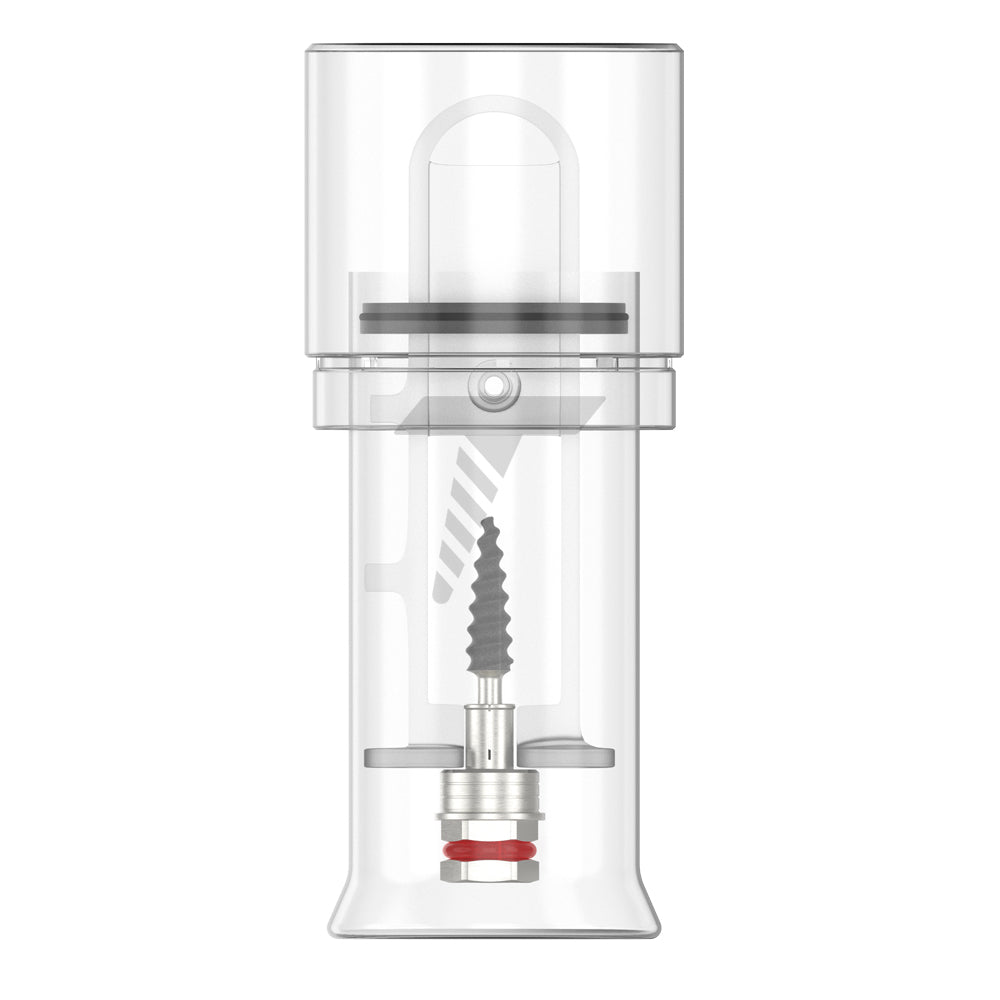

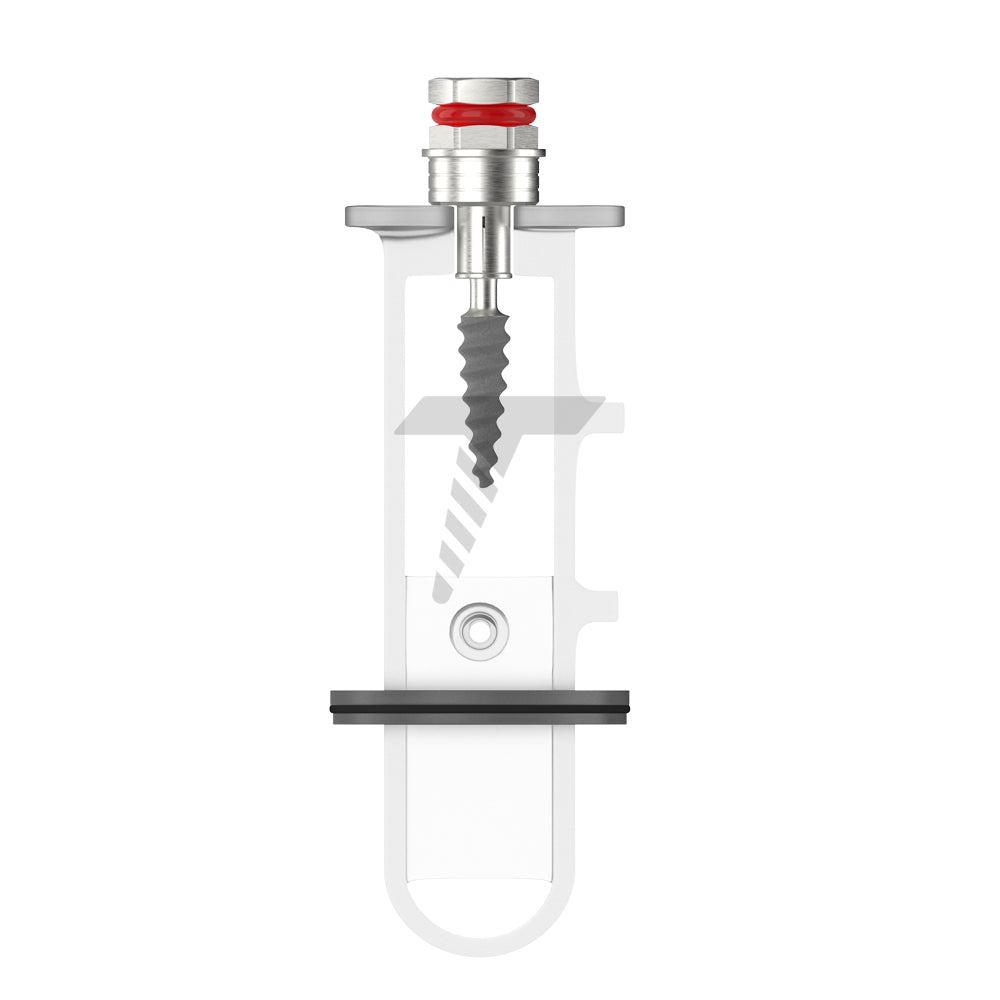

# Condition: Sterilized, Double Packaging
# Material: Titanium grade 5 (TI-6AL-4V ELI)
# Country of Manufacture: Israel

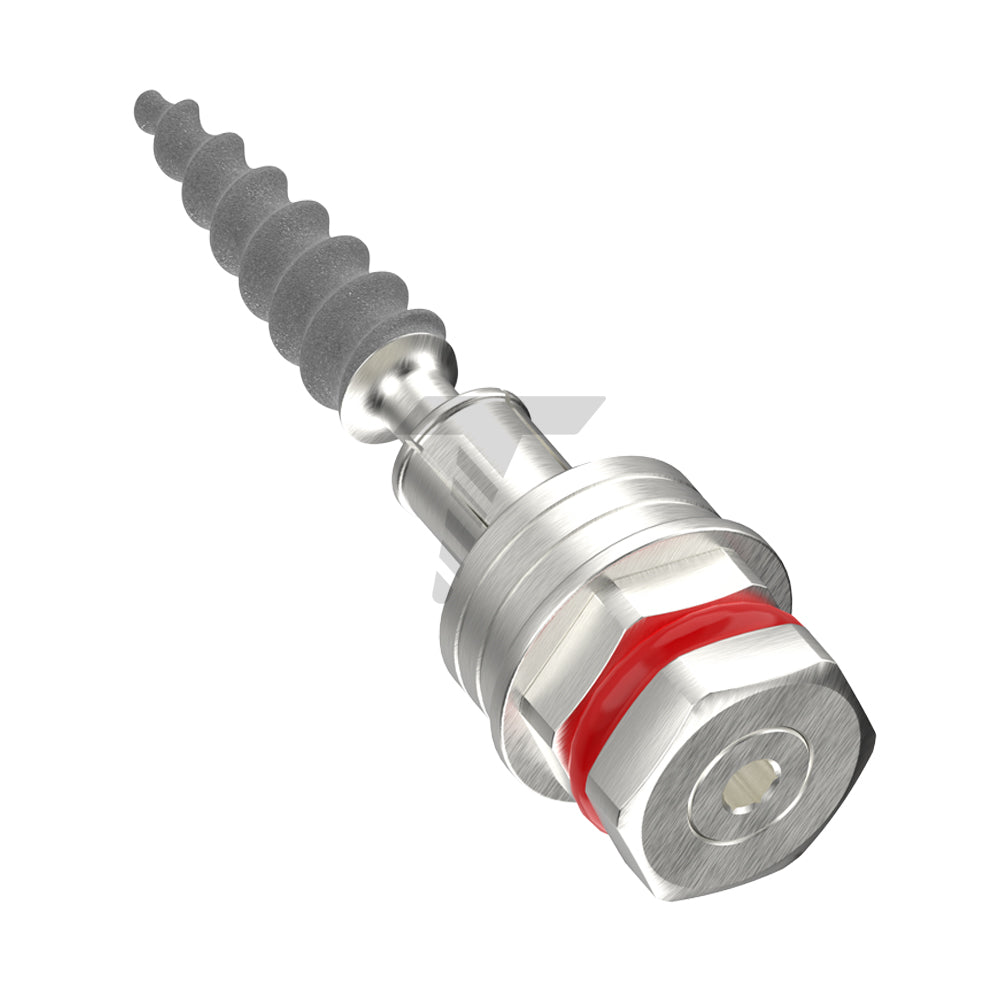

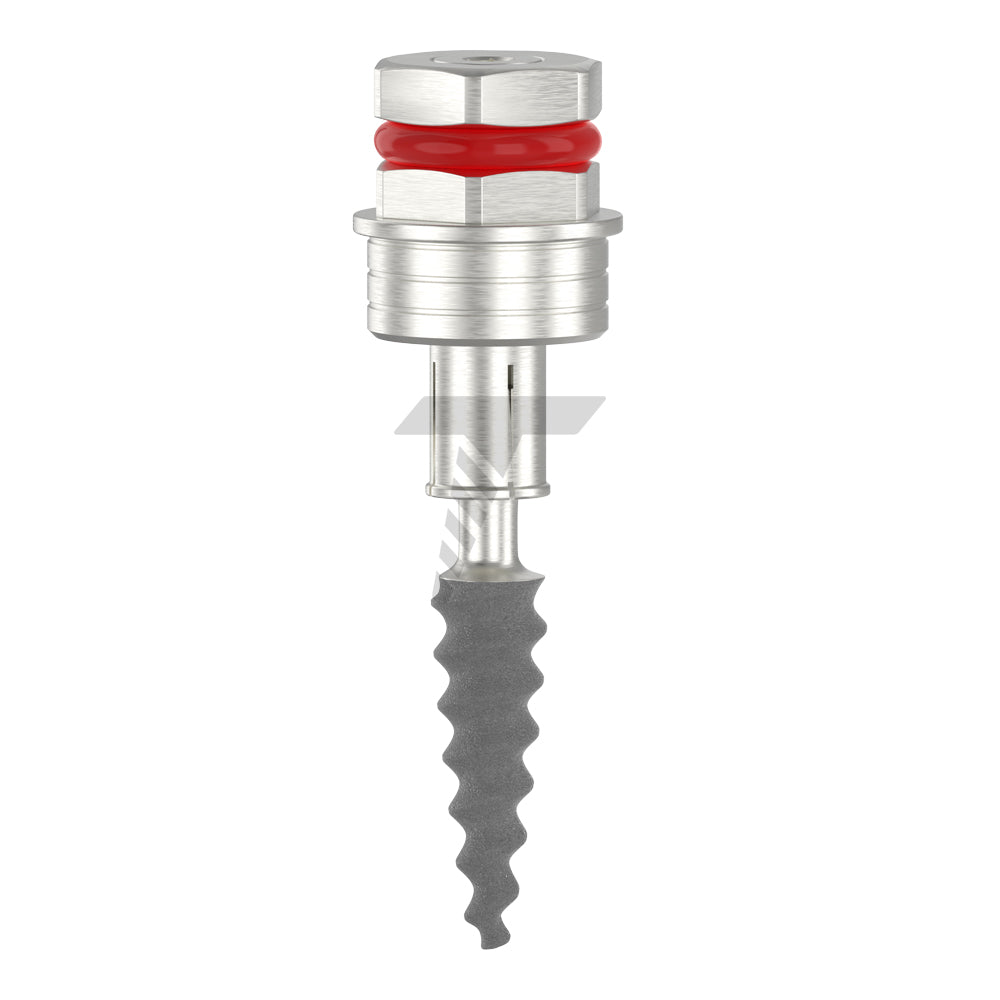

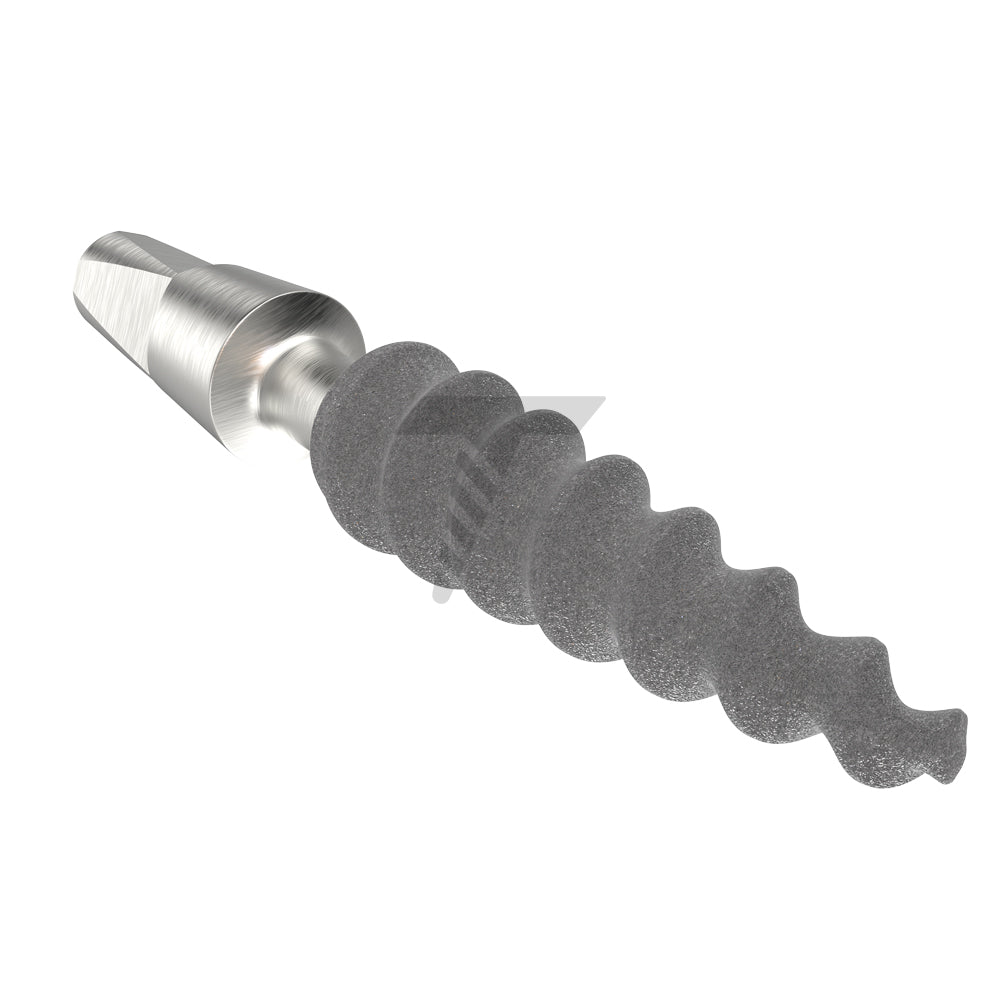

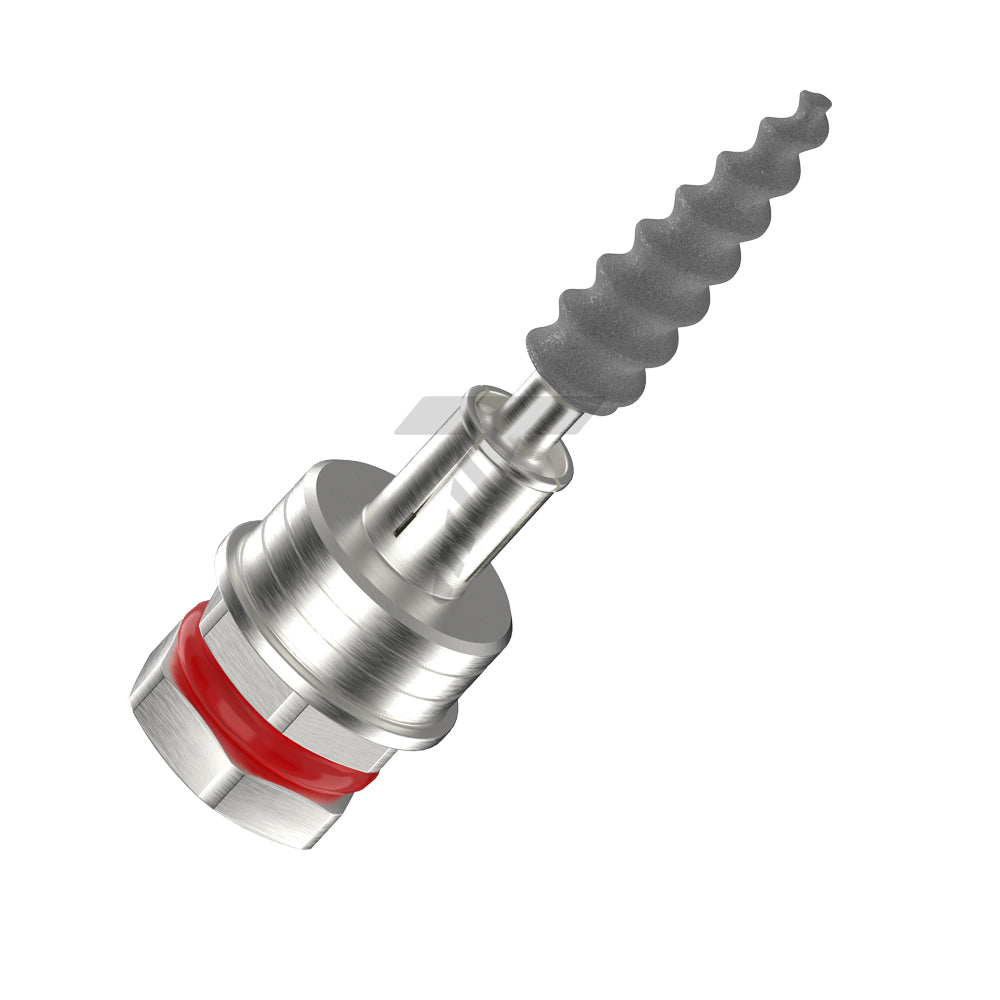

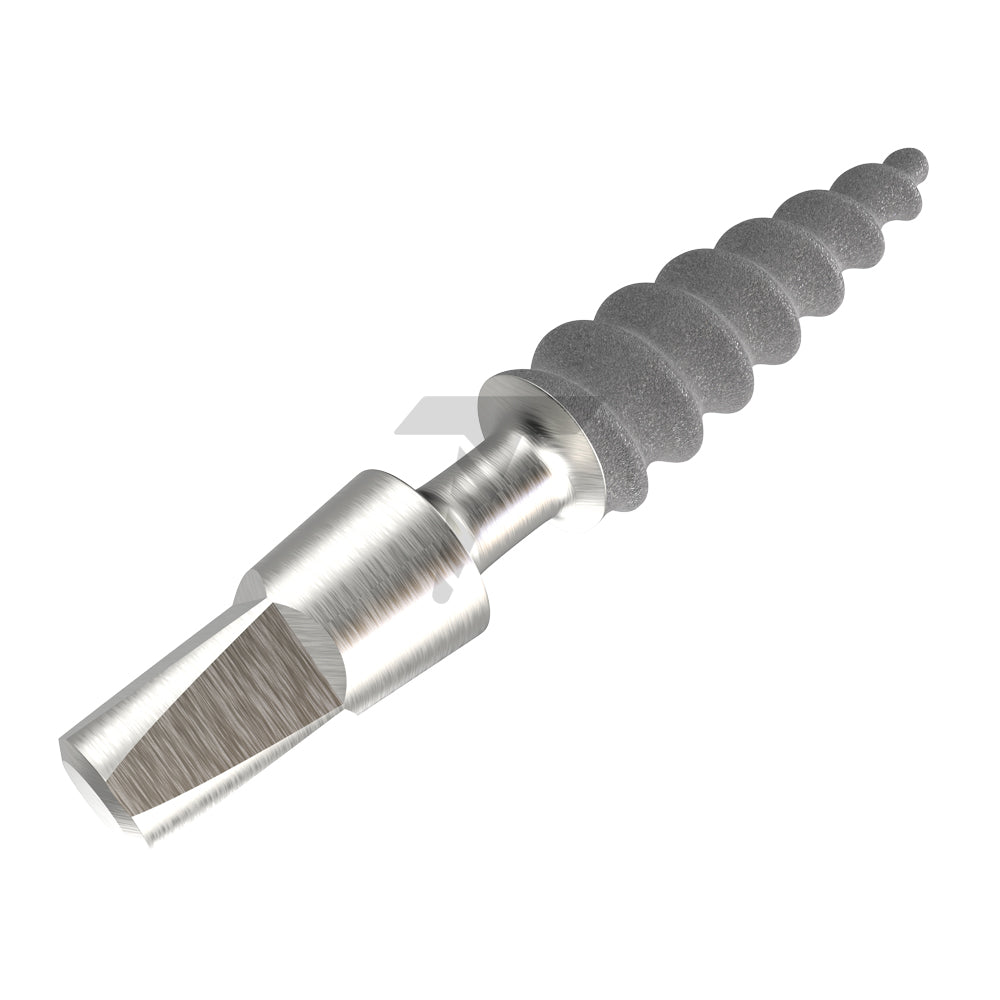

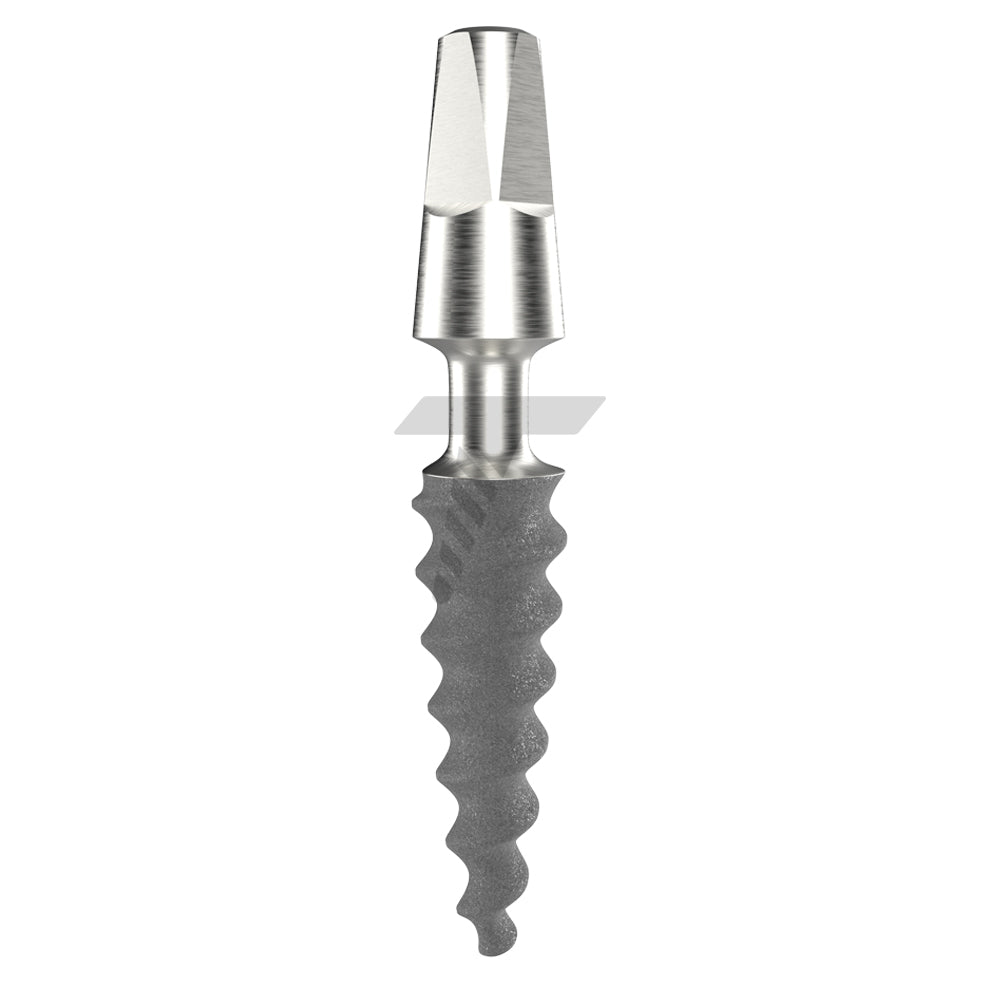

GDT Flexible Neck One Piece Implant is a single unit containing a body comprising an implant and a straight structure. This unique implant neck design can be curved up to 20°.

GDT Flexible Neck One Piece Implant is used for immediate loading because of its uniform structure, this implant is coated with RBM surface which is known as rough and hydrophilic surface treatment.

GDT implants are made of Titanium alloy Ti-6Al-4V ELI, a material that combines properties such as low specific weight, high strength to weight ratio, very high corrosion resistance, and excellent general biocompatibility.

Ti-6Al-4V ELI is very similar to Ti-6Al-4V, except that Ti-6Al-4V ELI contains reduced levels of oxygen, nitrogen, carbon, and iron. ELI is short for “Extra Low Interstitials”, and these lower interstitials provide improved ductility and better fracture toughness for the material. Ti-6Al-4V ELI has proven to be highly successful in the fabrication of dental implants.

Features

• Flexible Neck
• Immediate Loading
• Integrated Abutment

RBM Surface Treatment Technology

RBM surface is rough and hydrophilic. This surface treatment is designed to roughen the implant surface without leaving the residual embedded blast particles or debris in the treated substrate.

To gain the desired roughening the implant is blasted with suitable hardened particles of Hydroxyapatite (beta-tricalcium Phosphate, Alpha Tcp, TTcp, and Calcium Phosphate (CPP) and then subsequently dissolved from the surface with a defined passivation treatment. Surface roughness between Ra 1.2 - 1.5 is consistently achieved.

The result is a rougher implant surface than traditional acid etches treatment providing a greater surface area for osseointegration, improved retention characteristics, increased biological fixation, and maximizing implant-to-bone contact.

The RBM surface treatment is made to improve the healing process and tissue growth around the implant, with no worries of abruption or disintegration.

Product Video

Unboxing Video

Implant Sizes and Drilling Protocols

* The suggested drilling protocol is provided as a general recommendation only and should not replace the clinician’s professional judgment.

GDT Dental Implants provides a lifetime warranty on eligible dental implants manufactured under the GDT brand, subject exclusively to the terms, conditions, limitations, and exclusions set forth in the official Warranty Policy.

Where applicable and approved by GDT, the warranty is limited to replacement of the qualifying implant or related GDT-manufactured component in cases such as verified manufacturing defect, implant fracture, contamination in the original sealed packaging, or another qualifying product-related failure that meets the policy requirements.

Warranty coverage does not replace clinical judgment, proper case selection, professional handling, or compliance with accepted dental protocols. Please review the full Warranty Policy for complete details regarding eligibility, required documentation, exclusions, regional availability, and claim procedures.
