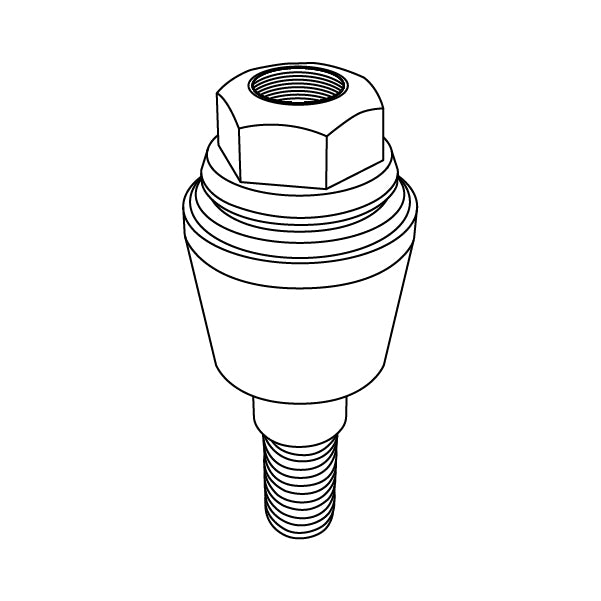

Straight Multi Unit 1.6 Abutment

Straight 1.6 multi-unit abutments provide a stable connection for multiple dental implant fixtures, supporting bridges or dentures. Made from high-quality Titanium grade 5 (Ti-6Al-4V ELI), they offer exceptional strength and biocompatibility.

These abutments ensure a perfect fit and reliable performance, making them ideal for complex restorations. Cost-effective and versatile, straight 1.6 multi-unit abutments are perfect for restoring function and aesthetics in patients with multiple missing teeth.

Straight Multi Unit 1.6 Abutment Internal Hex Connection

Straight Multi Unit Conical Connection

Straight Multi Unit 1.6 Abutments and Restorative Components

GDT Straight Multi Unit 1.6 Abutments and Restorative Components are designed for screw-retained implant restorations that require a straight multi-unit platform and matched prosthetic components. The collection includes straight abutments for compatible GDT Internal Hex and Conical Connection implant systems, together with restorative, impression, laboratory, and digital-workflow components.

Straight Multi Unit 1.6 Abutments are available for Slim Platform Internal Hex 2.0, Internal Hex 2.42, Conical NP 2.25, and Conical RP 2.65 connections. The 1.6 designation refers to the Multi Unit 1.6 screw platform. Select the abutment height according to the implant platform, soft-tissue level, restorative space, and planned prosthetic design.

Height availability varies by connection and product. For example, Slim Platform Internal Hex 2.0 straight abutments are available in 1 mm, 2 mm, 3 mm, and 4 mm heights, while the Internal Hex 2.42 straight abutment is available in heights from 1 mm to 5 mm. Confirm the specifications of the selected product before ordering.

Available Sets and Components Workflow

The collection includes titanium sleeve sets, plastic sleeve sets, complete kits, and CAD/CAM sets. Set contents vary by product and platform. For example, a titanium sleeve set may include a straight multi-unit abutment, fixation screw, and titanium sleeve. A complete kit may include an abutment, titanium screws, plastic and titanium sleeves, an open transfer, analog, and healing cap. Selected CAD/CAM sets include an abutment, titanium screw, CAD/CAM titanium base, and scan body.

Additional components include Multi Unit 1.6 healing caps, standard Multi Unit 1.6 screws, MULink screws, Titanium Bases, Titanium Body Scan components, analogs, and open- and closed-tray impression transfers. Materials vary by selected product and include Titanium Grade 5, stainless steel, and POM.

GDT MULink screws are intended for direct screw-retained restorations on compatible GDT Multi Unit 1.6 straight and angulated abutments. The screw head engages the restoration’s screw channel, allowing the restoration to connect directly to the multi-unit abutment without a bonded Ti-Base. MULink screws are installed with a 1.25 hex driver and support dedicated CAD libraries for exocad and 3Shape.

Technical Specifications & System Variants:

Screw Platform: Multi Unit 1.6 system.
Implant Connection Options: Slim Platform Internal Hex 2.0, Internal Hex 2.42, Conical NP 2.25, and Conical RP 2.65.
Conical Straight Abutment Heights: Product-specific options from 1 mm to 5 mm across the collection.
Slim Platform Internal Hex 2.0 Abutments: Available in 1 mm, 2 mm, 3 mm, and 4 mm heights.
Internal Hex 2.42 Abutments: Available in 1 mm, 2 mm, 3 mm, 4 mm, and 5 mm heights.
Restorative Set Options: Titanium sleeve sets, plastic sleeve sets, complete kits, and CAD/CAM sets.
Healing and Fixation Components: Multi Unit 1.6 healing caps, standard Multi Unit screws, and MULink screws.
Digital and Impression Components: Titanium Bases, Titanium Body Scan components, analogs, and open- and closed-tray transfer components.
Materials: Materials vary by component and include Titanium Grade 5, stainless steel, and POM.
Component Selection: Confirm the implant connection, abutment height, screw platform, selected restorative component, and applicable instructions for use before treatment.

By selecting GDT Straight Multi Unit 1.6 components as a matched system, clinicians can prepare a screw-retained restorative workflow according to the implant platform, restorative space, impression method, and laboratory or digital protocol. Always verify component compatibility before use.

Frequently Asked Questions About Straight Multi Unit 1.6 Abutment

Where Are Multi-Unit Abutments Useful?

These are ideal for accommodating height differences in an implant system. They give you more freedom when treating your patient, as they’re the connectors between the implants and the screw-retained restorations.

The abutment will hold the patient’s bridge and assume the vertical and lateral loads while chewing. Since this is the “straight” variant of the abutment, it’s suitable for most cases, as long as there are no indicators for needing angled ones.

You can restore two teeth or even more with these abutments. Essentially, they make some specific treatments much more manageable compared to other traditional systems, which is great news for you and your patient.

What Material Is the Abutment Made of?

These abutments were made out of Titanium Grade 5 (TI-6AL-4V ELI). It’s one of the most commonly used titanium alloys, as it promotes a higher degree of toughness and strength for the patient.

You can use this material in a wide range of medical devices and implants, including the straight multi-unit 1.6 abutment.

Generally speaking, this material has a higher purity than “regular” Grade 5 titanium, making it an excellent option for dental implants. In an effort to provide dental professionals with enough versatility and safety, GDT Implants offers these abutments to ensure you can be more flexible with your treatments.

Is the Straight Multi-Unit 1.6 Abutment Resistant to Corrosion?

The straight multi-unit 1.6 abutment was carefully designed with corrosion resistance in mind.

Thanks to the titanium material that the abutment features, you won’t have to worry about considerable damage to the product in most environments.

Durability and biocompatibility are among the most important factors to consider when getting an implant system, which is why these abutments were carefully designed to fit most environments.

The accessories provided by GDT Implants are also durable and resistant to corrosion. You can get the healing caps, for example, and ensure the soft and hard tissues heal properly.

Everything on this page was created to make your patient’s life much easier while allowing you to work comfortably.

What Benefits Do You Get with the Titanium Sleeve Set?

The sleeve set was designed to work with these multi-unit abutments, ensuring a seamless fit and secure attachment to the implant. Not only does this make the procedure more practical for the professional, but it also makes it easier on the patient.

You can get the set in its regular or “Slim” variant, depending on what your needs are. Furthermore, if this material isn’t what you’re looking for, you may also consider the plastic sleeve set.

Thanks to these sleeves, you can easily place it over the abutment and adjust it, making it the base of a future restoration. You’ll get more practicality, safety, and convenience when using these sleeves.

Are all Straight Multi Unit 1.6 Abutments available in the same heights?

No. Height availability varies by connection and product line to match specific clinical needs. For instance, Slim Platform Internal Hex 2.0 abutments are available in 1mm to 4mm heights, while standard Internal Hex 2.42 abutments are available in heights ranging from 1mm to 5mm.

What is the difference between a standard Multi Unit 1.6 screw and a MULink screw?

The standard Multi Unit 1.6 screw is used to secure standard compatible GDT components. The MULink screw is an advanced alternative intended for direct screw-retained restorations; its unique head design allows the restoration to connect directly to the multi-unit abutment without requiring a bonded Ti-Base, fully supporting digital exocad and 3Shape workflows.
