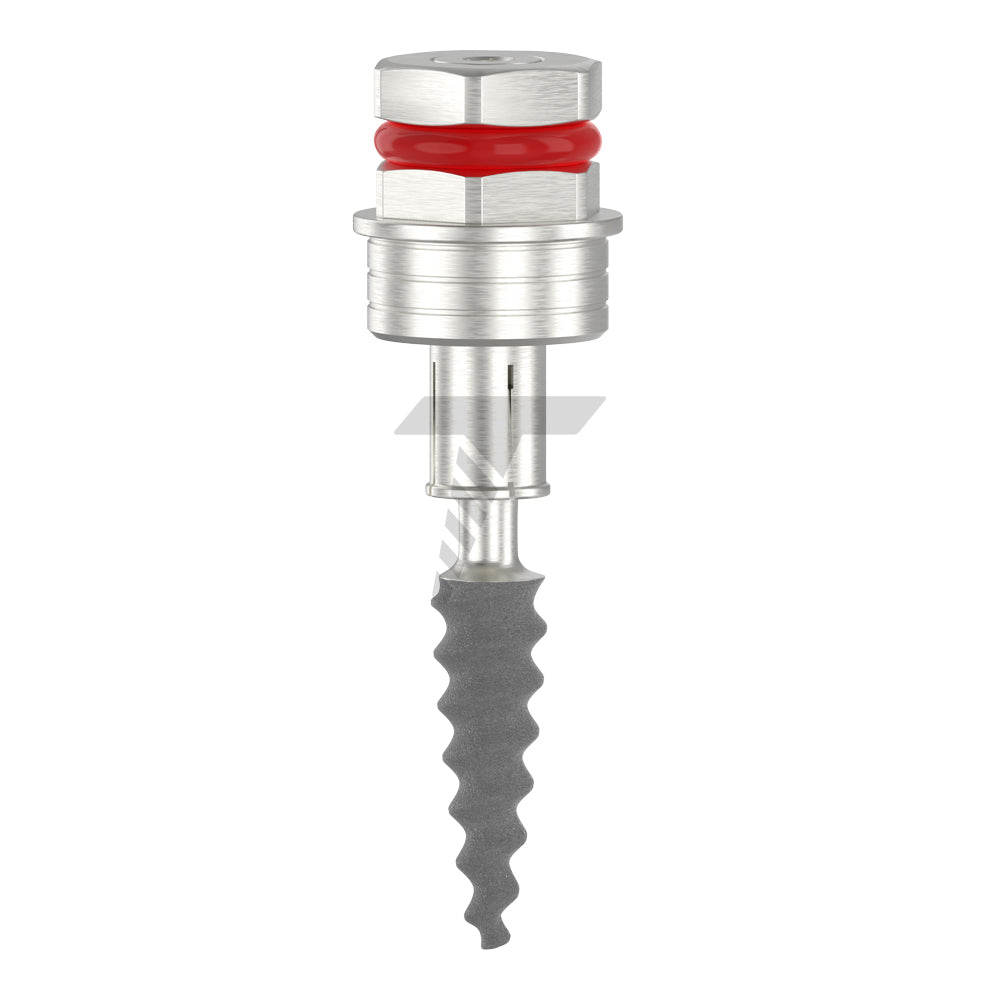

Flexible Neck One Piece Implant Set

SKU: B3310

$99.0

Please enter the quantity needed to the table below!

Length/Diameter 3.3mm3.75mm4.2mm5.0mm
6.0mm
8.0mm
10.0mm
11.5mm
13.0mm
16.0mm
Quantity: 0 Total: $0.00

Secure Checkout With

SHIPPING & PAYMENT

Shipping
Shipping Company Shipping Cost Estimated Delivery Time Tracking Information
Israel Post - Standard Shipping Free Shipping

7-21

Business days

Available
DHL - Express Shipping

$35

(Free On Order Over $399)

1-3

Business days

Available
UPS - Express Shipping

$35

(Free On Order Over $399)

1-3

Business days

Available



Payment

Our online store accepts payments by Credit Cards (Visa, MasterCard, Maestro, American Express), PayPal, and Apple Pay

Our website is checked and certified by international data protection systems. Regardless of payment method, the SSL certificate protects all the payment pages.



Return policy

We will provide instruction on where to return/exchange your item(s). Please note that we can exchange or take back goods only in original packaging without any damage. You should send the product(s) within 60 days of receipt. Exchanges may take up to 10 business days to process after we receive the tracking number for the returned goods.

Full Refund if you don't receive your order. If you do not receive your purchase within 30 days, you can ask for a full refund before order completion.



Description

# Implant Diameters: 3.3mm, 3.75mm, 4.2mm, 5.0mm
# Implant Length: 6.0mm, 8.0mm, 10.0mm, 11.5mm, 13.0mm and 16.0mm
# Surface Treatment: RBM - Resorbable Blast Media, Calcium Phosphate.

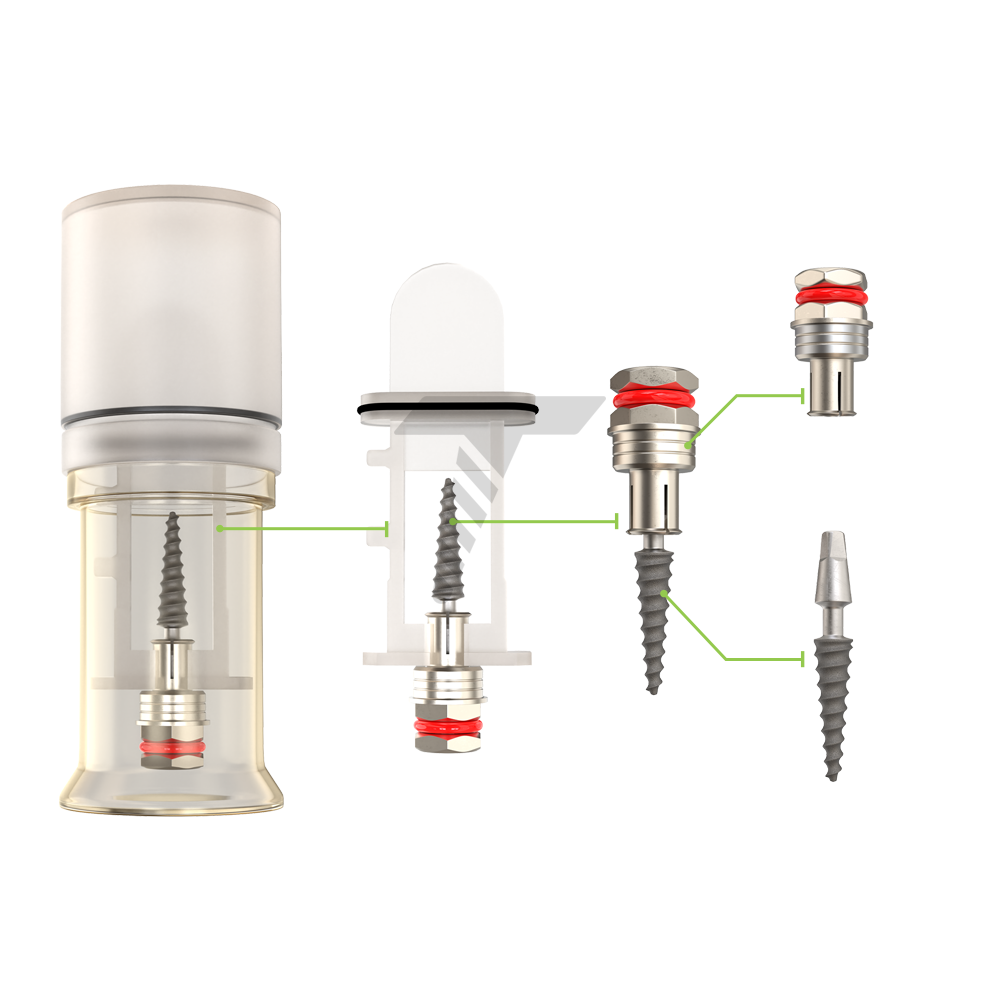

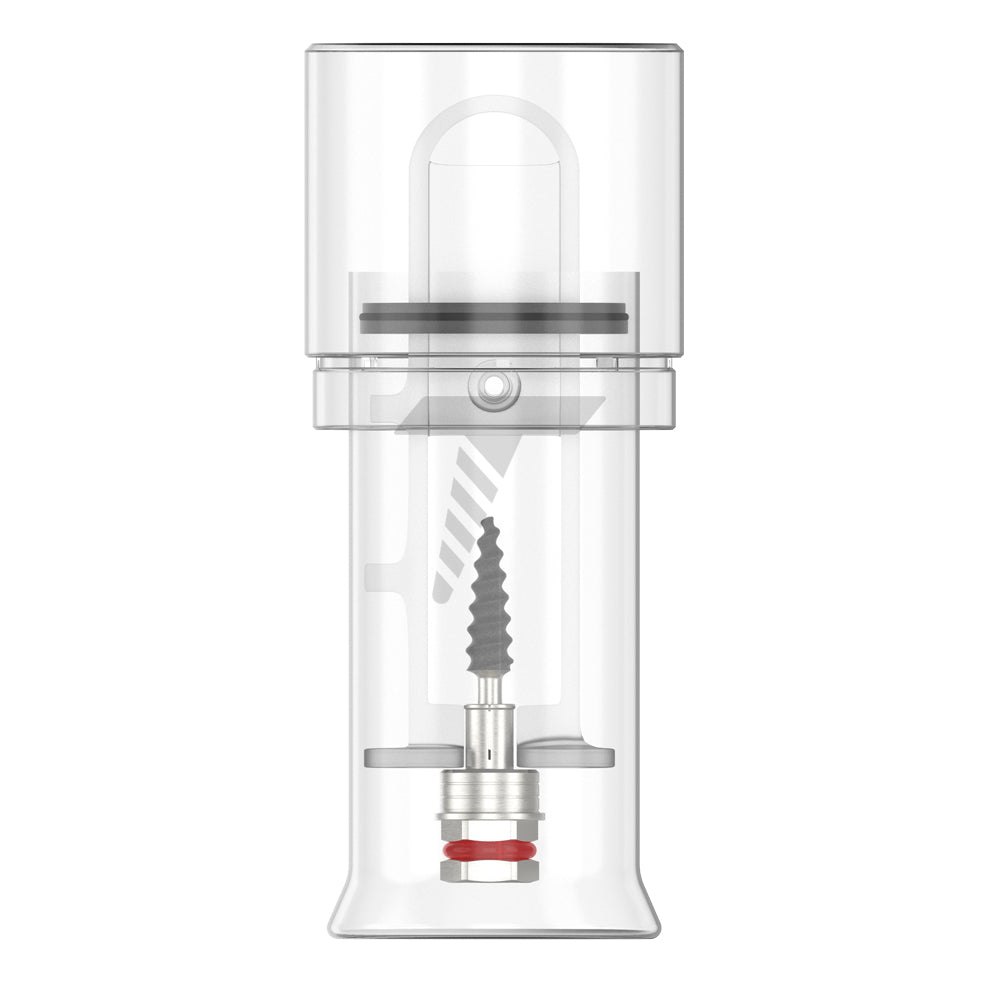

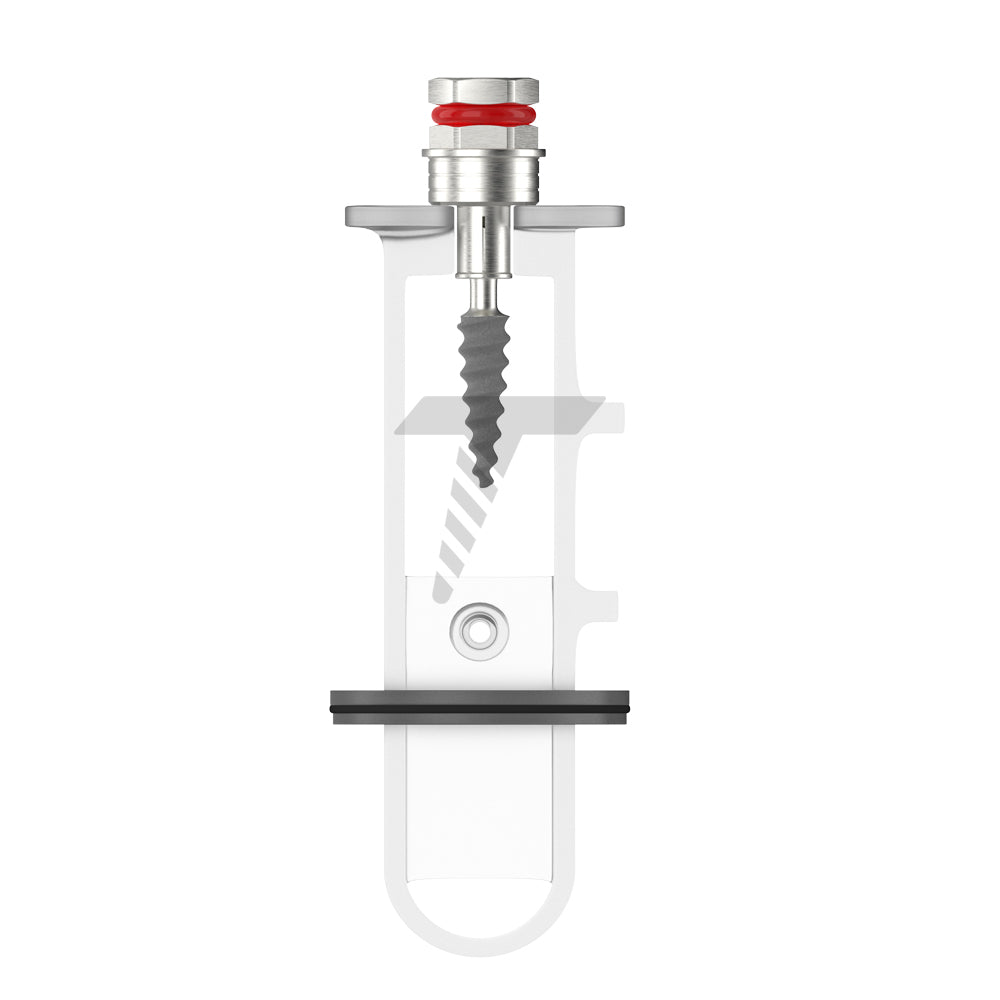

# Condition: Sterilized, Double Packaging
# Material: Titanium grade 5 (TI-6AL-4V ELI)
# Certificates: CE Approved, ISO (9001:2008), MEDICAL ISO (13485:2003), FDA Approved
# Country of Manufacture: Israel

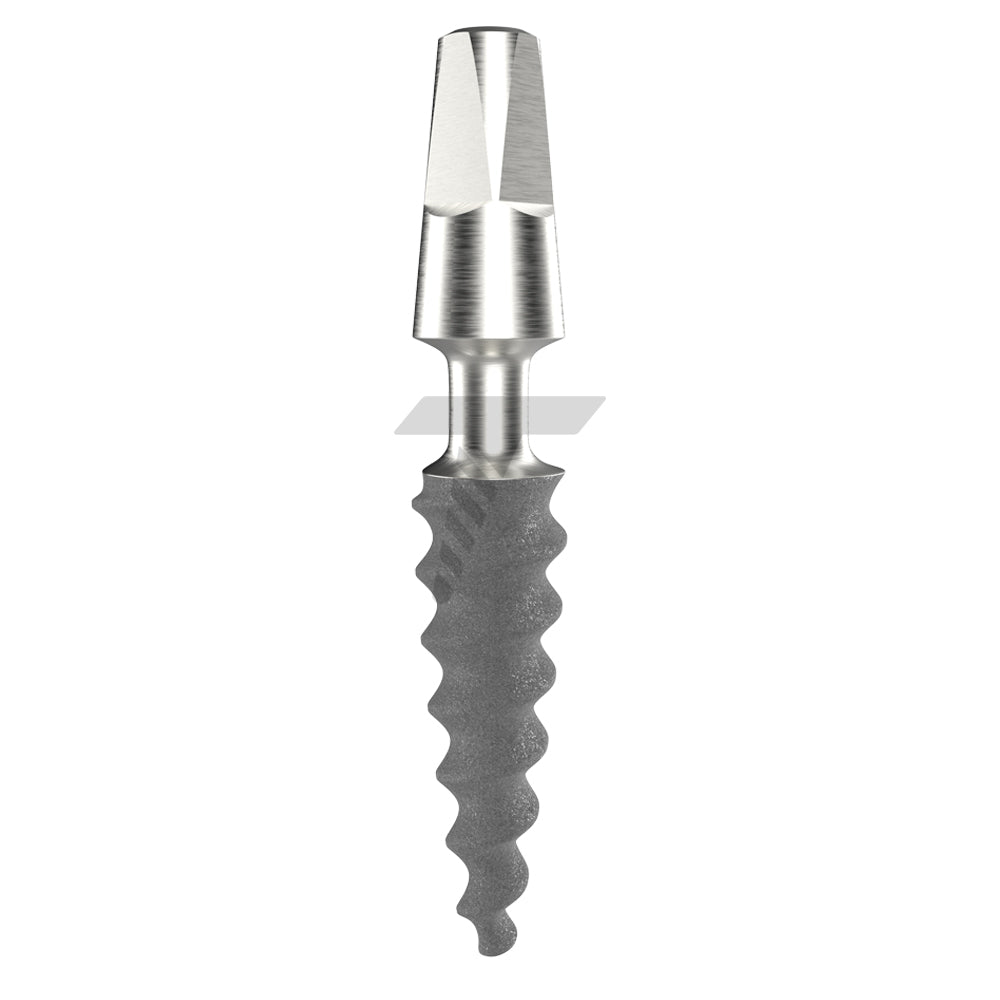

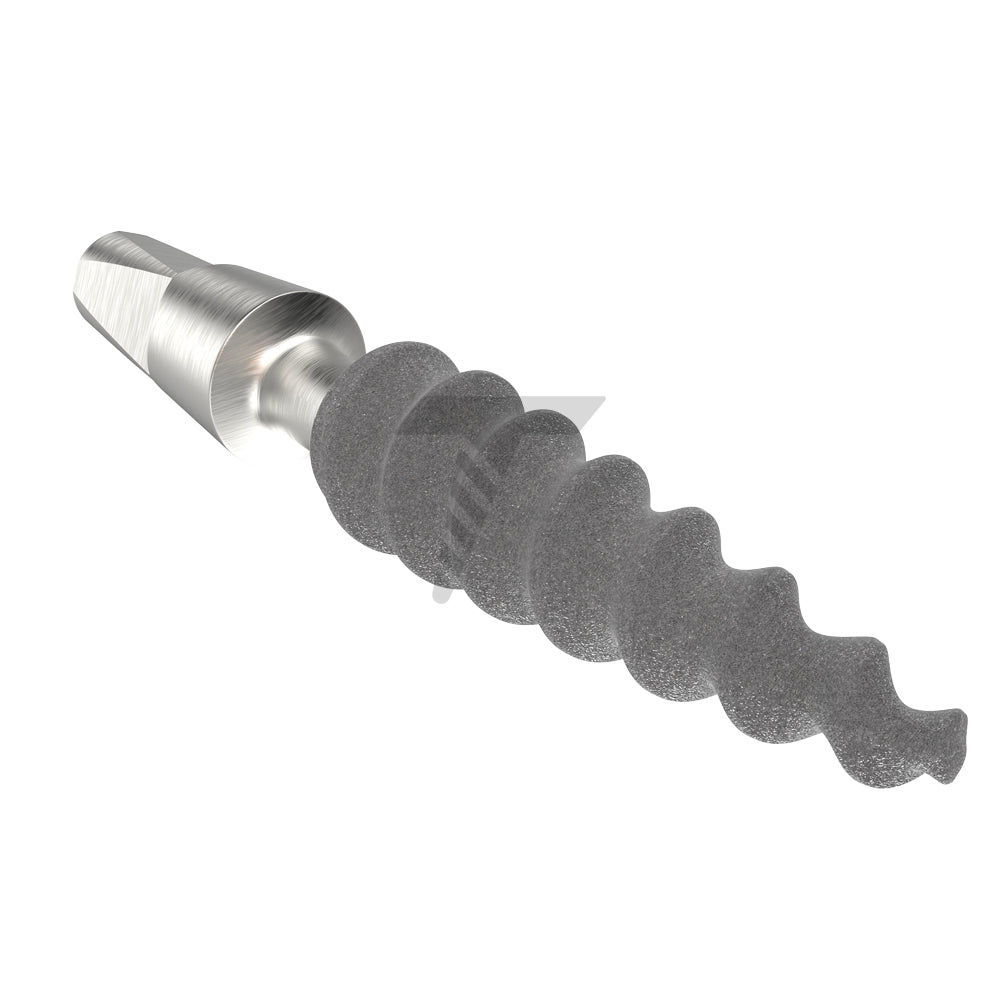

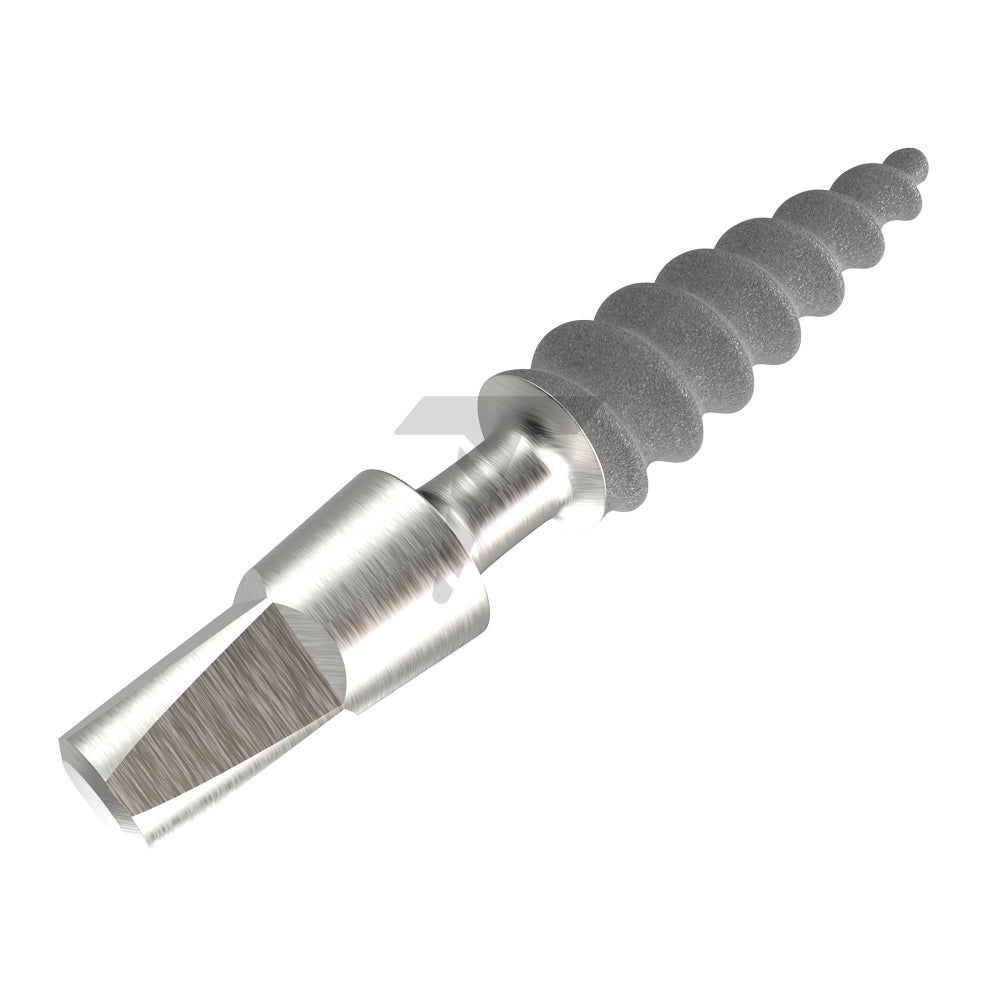

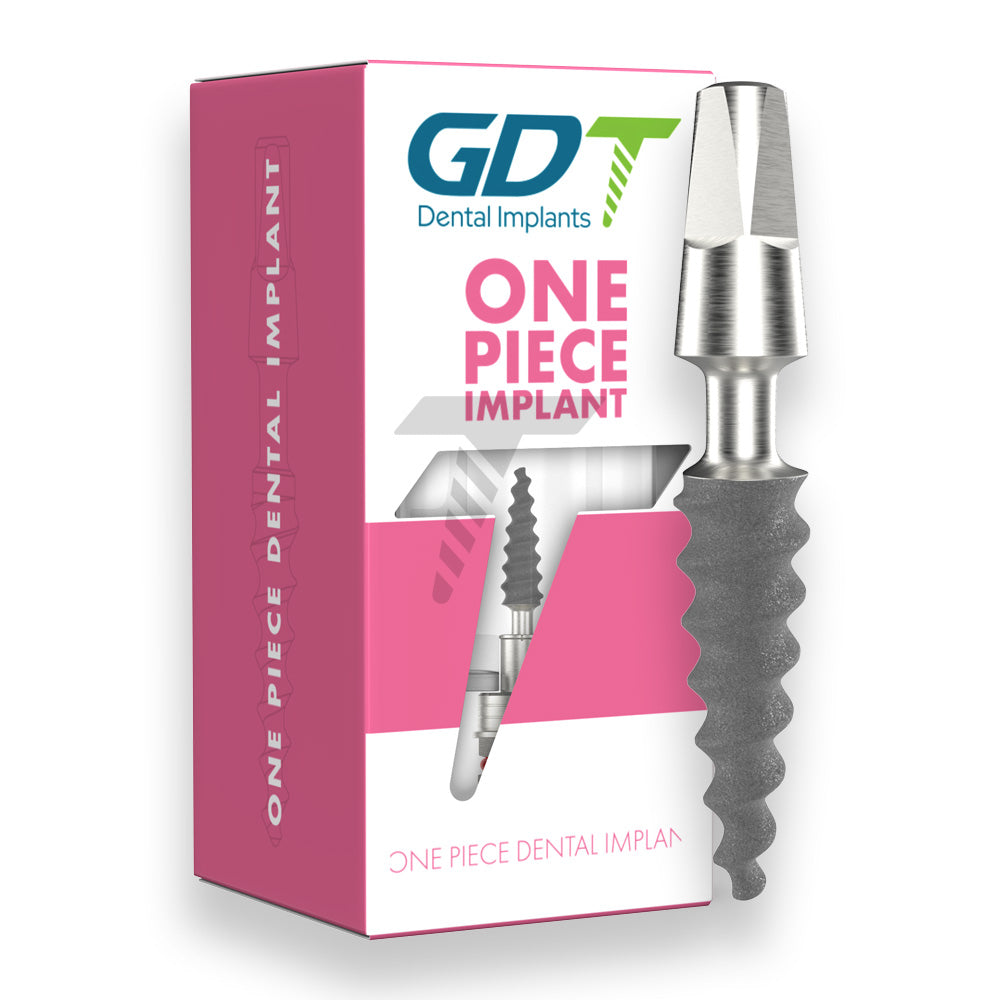

GDT Flexible Neck One Piece Implant is a single unit containing a body comprising an implant and a straight structure. This unique implant neck design can be curved up to 45°.

GDT Flexible Neck One Piece Implant is used for immediate loading because of its uniform structure, this implant is coated with RBM surface that is known as rough and hydrophilic surface treatment.



Features:

  • Flexible Neck

  • Immediate Loading

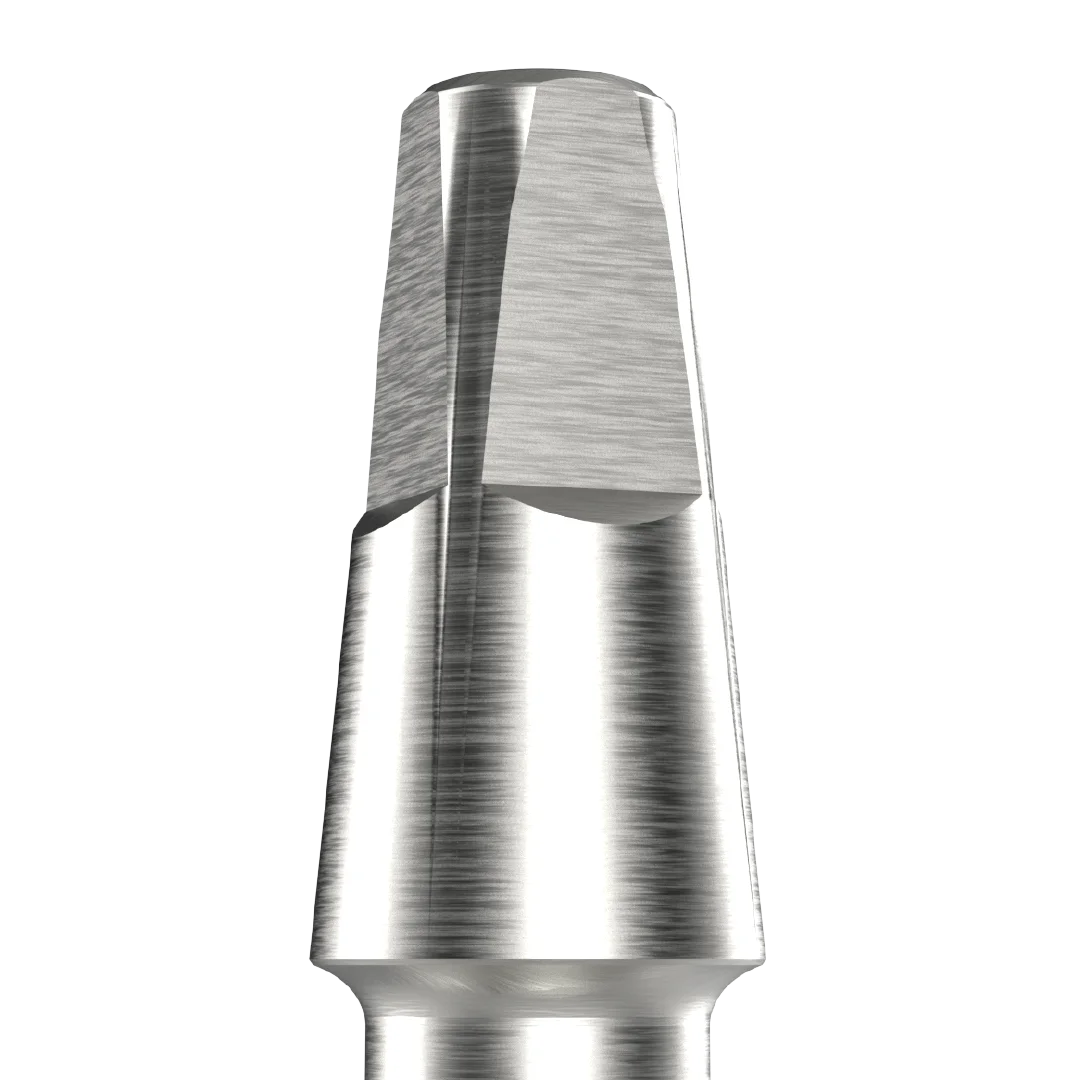

  • Integrated Abutment

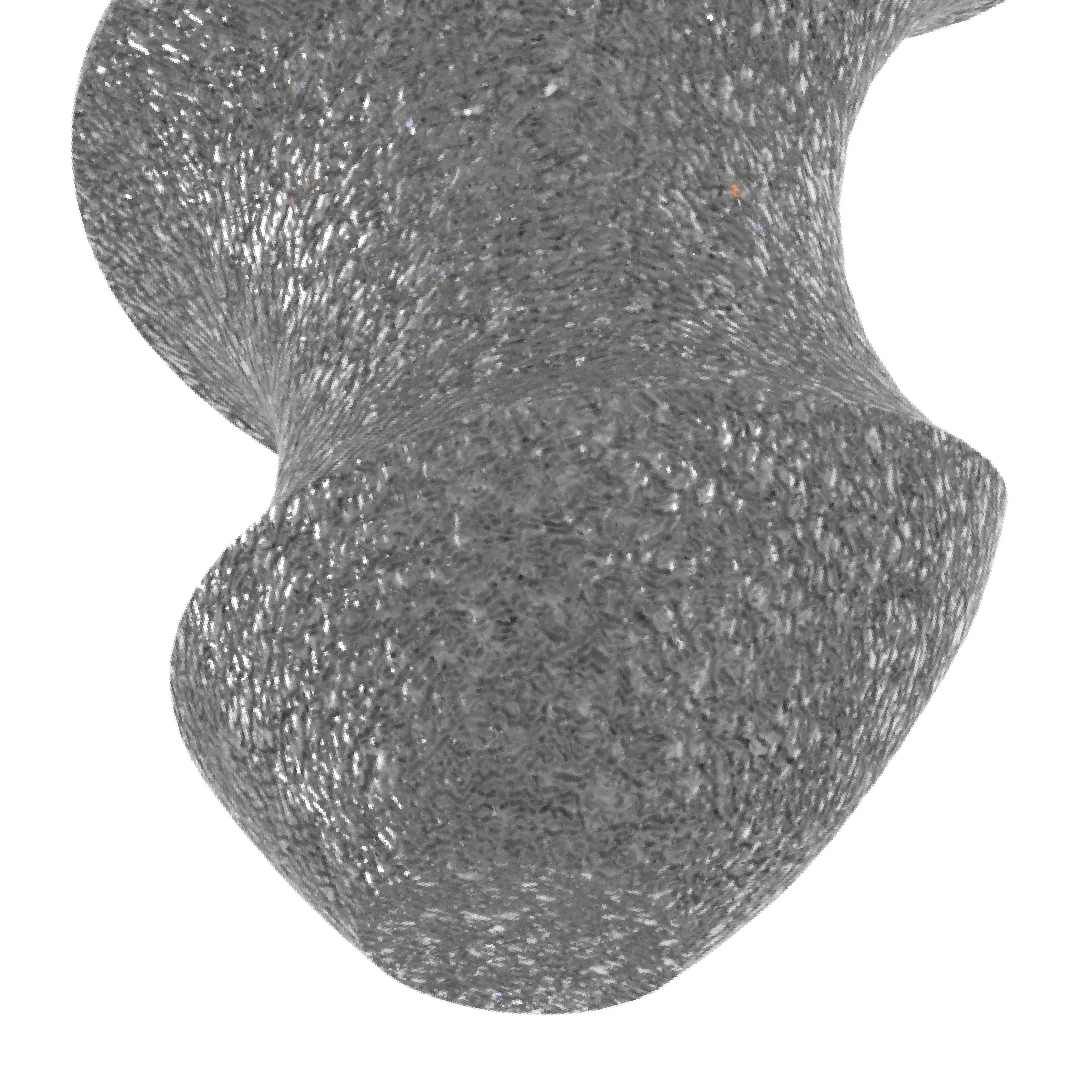

RBM Surface Treatment Technology:

RBM surface is rough and hydrophilic.
This surface treatment is designed to roughen the implant surface without leaving the residual embedded blast particles or debris in the treated substrate.
To gain the desired roughening the implant is blasted with suitable hardened particles of Hydroxyapatite (beta-tricalcium Phosphate, Alpha Tcp, TTcp, and Calcium Phosphate (CPP) and then subsequently dissolved from the surface with a defined passivation treatment.
Surface roughness between Ra 1.2 - 1.5 is consistently achieved.
The result is a rougher implant surface then traditional acid etches treatment providing a greater surface area for osseointegration, improved retention characteristics, increased biological fixation, and maximizing implant-to-bone contact.
The RBM surface treatment is made to improve the healing process and tissue growth around the implant, with no worries of abruption or disintegration.

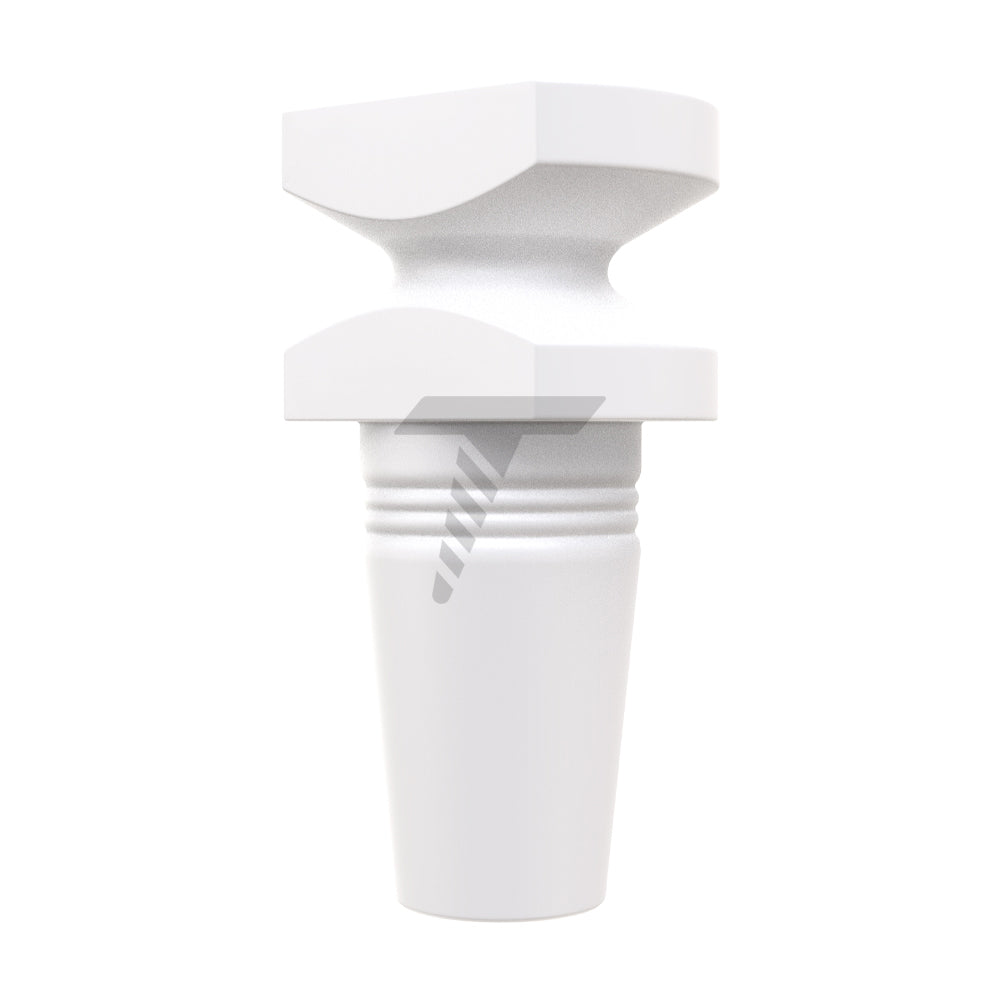

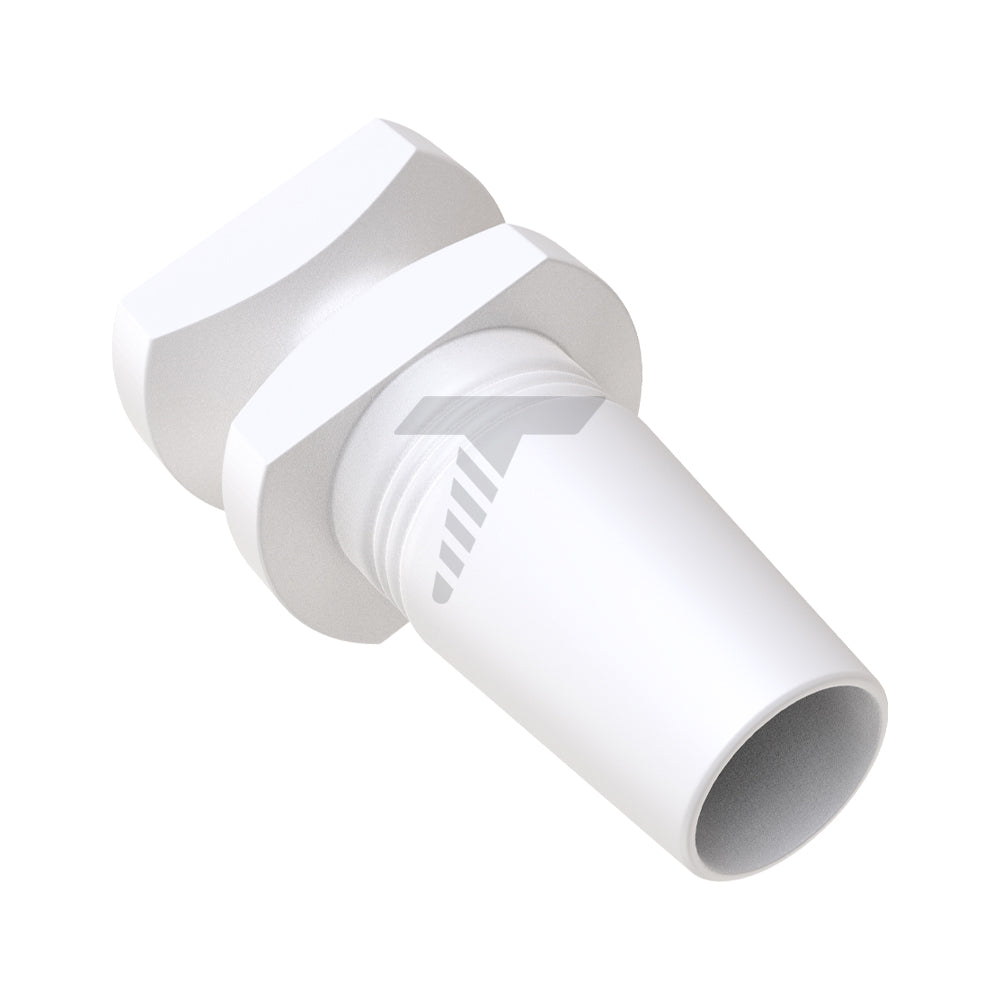

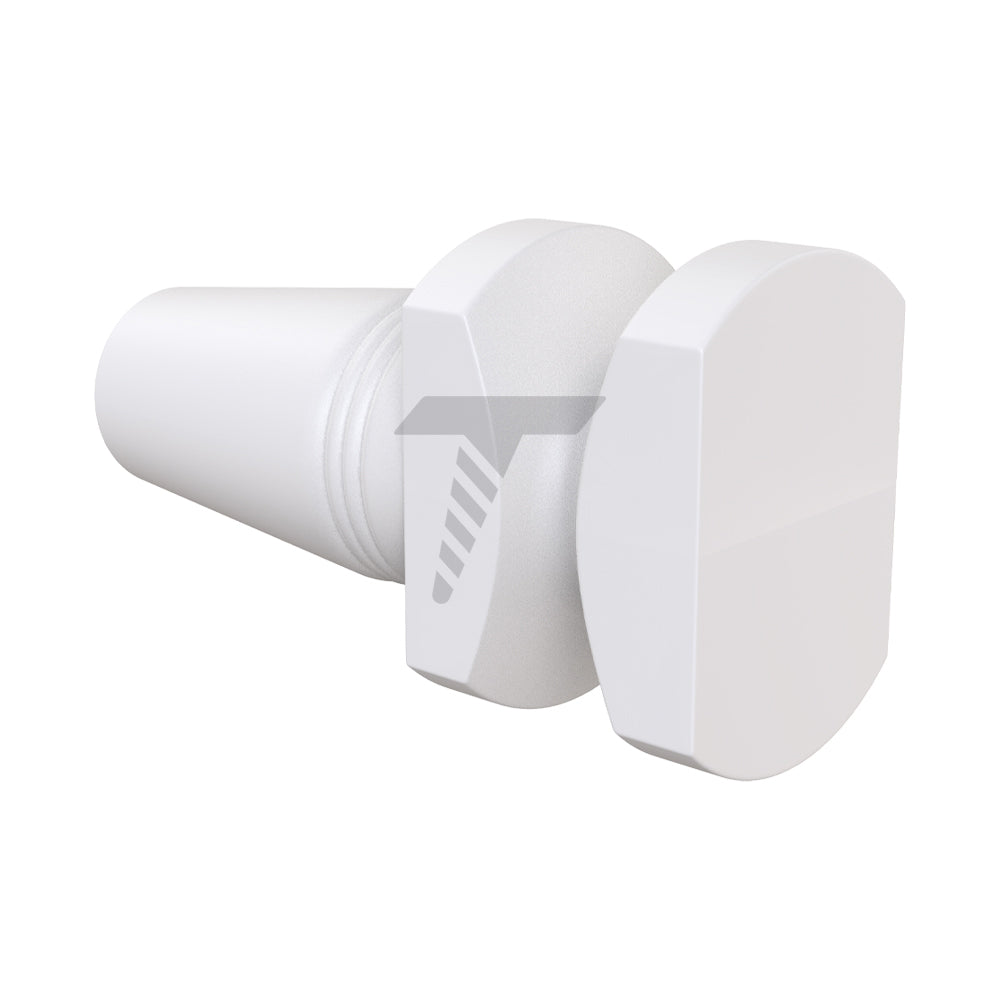

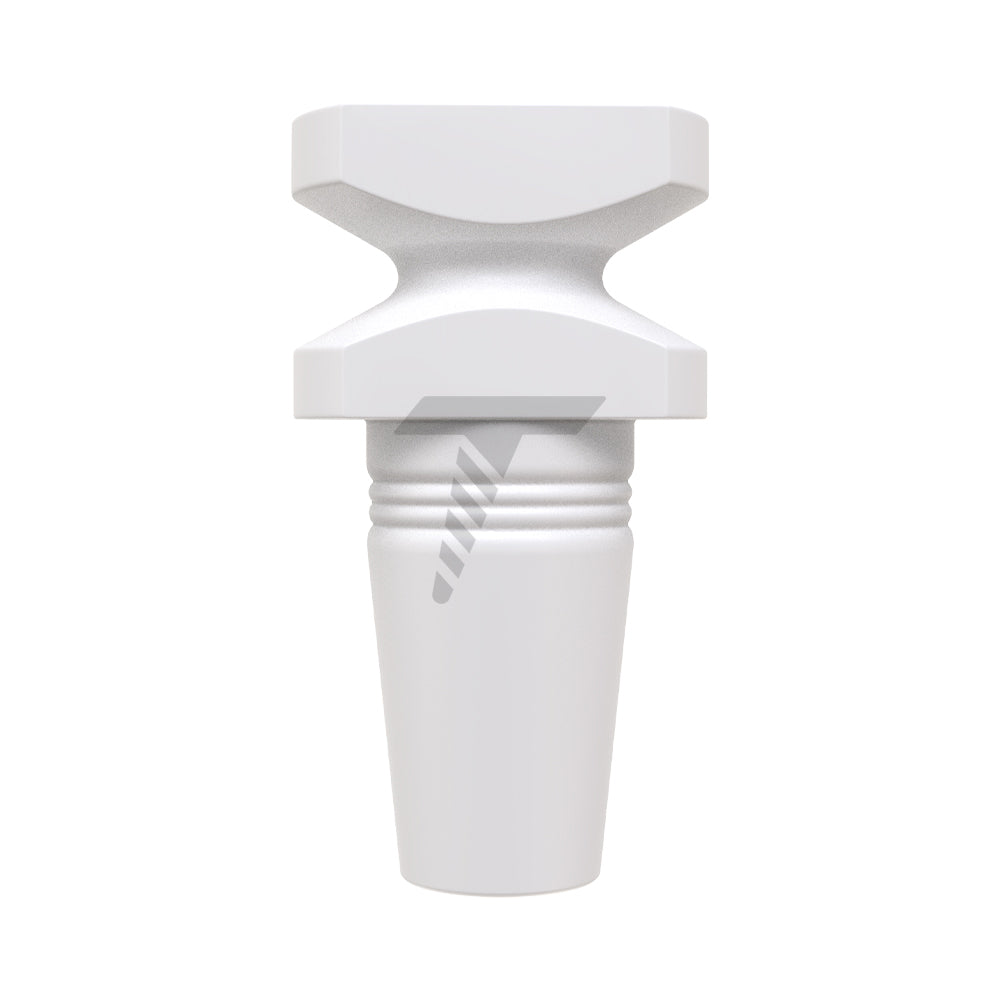

Impression Coping Transfer

GDT Impression transfer for one-piece implants gives you the ability to precisely record an implant position in each implant-supported prosthetics.

They used closed tray impressions, pick-up impression techniques.

The cap stays in the impression coping to prevent further movement to provide you better accuracy, stability, and expected results.

This method gives you an exact place orientation without extra working time.

This transfer makes your work easier and more accurate in challenging cases when the position of an implant inflicts with an impression coping procedure.

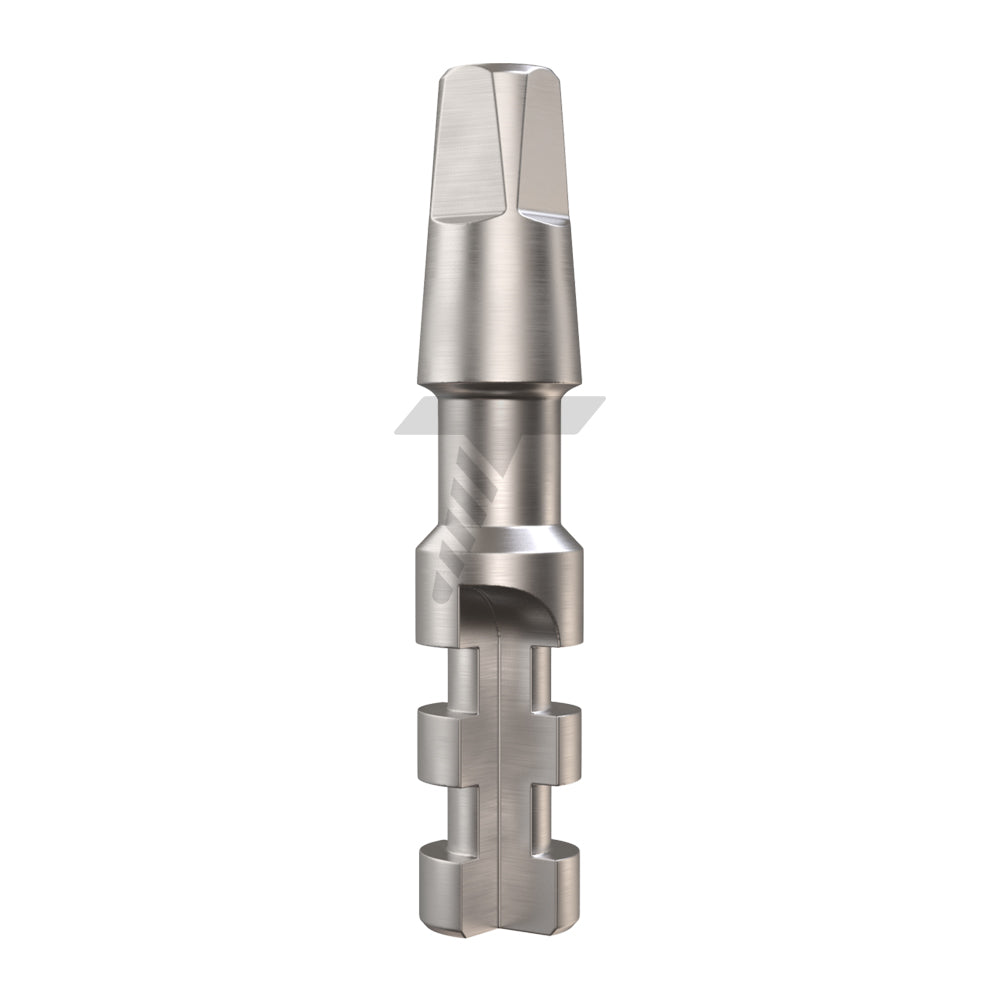

Analog

GDT One-Piece Implant Analog is a simple tool for laboratories working on one-piece implants.

This analog ideally replicates the shape and size of the one-piece implant and exact build-in abutment positioning.

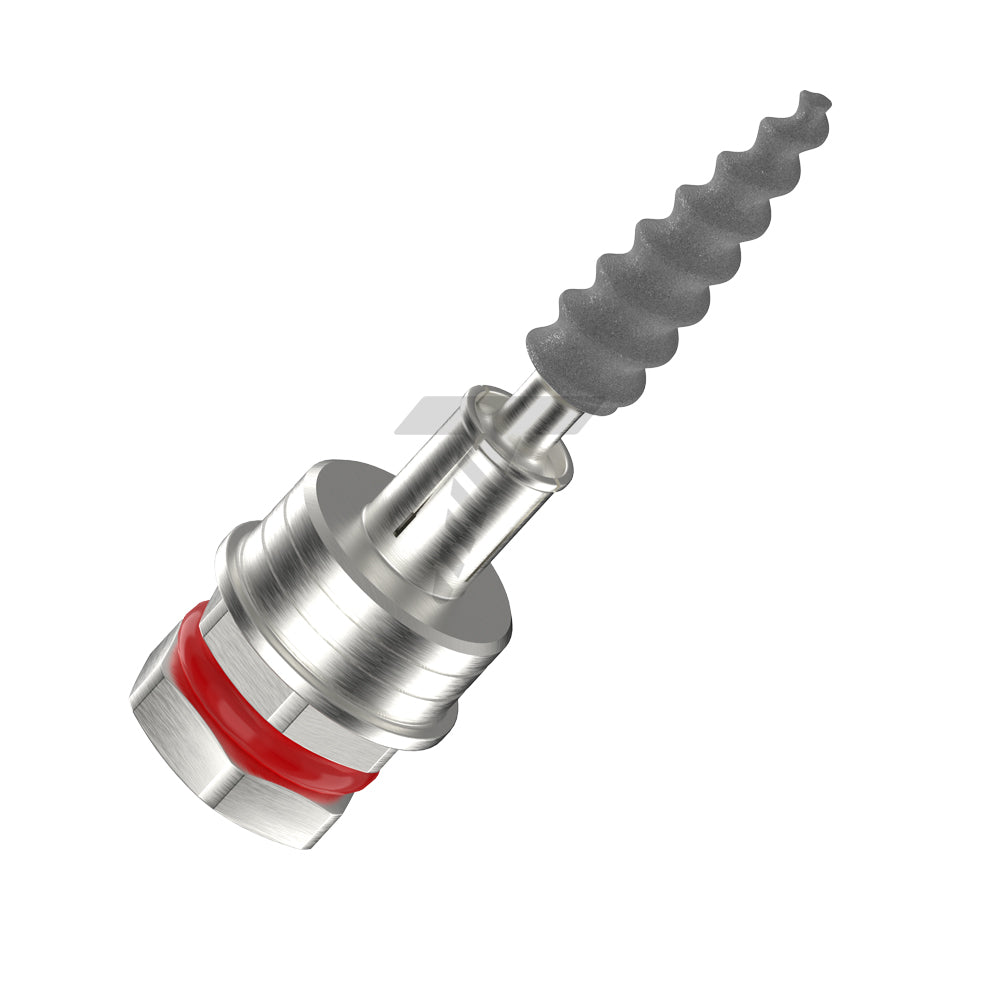

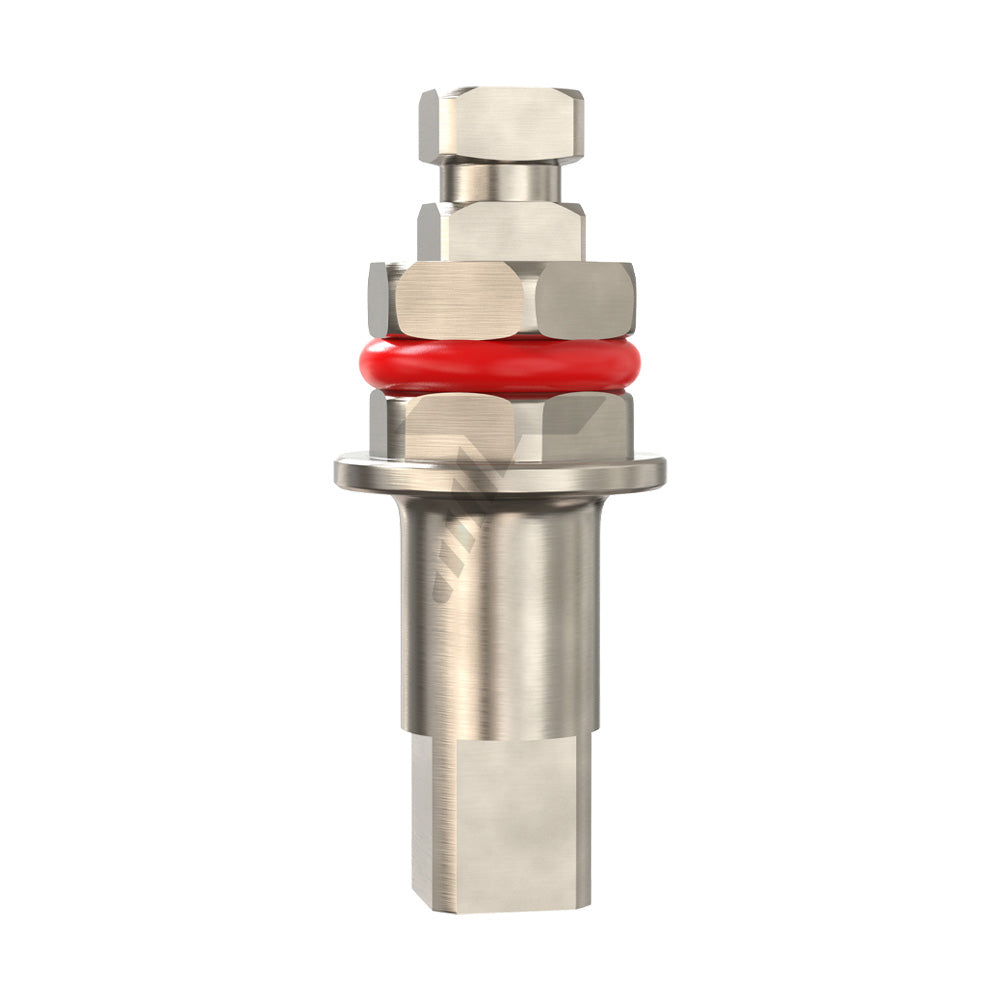

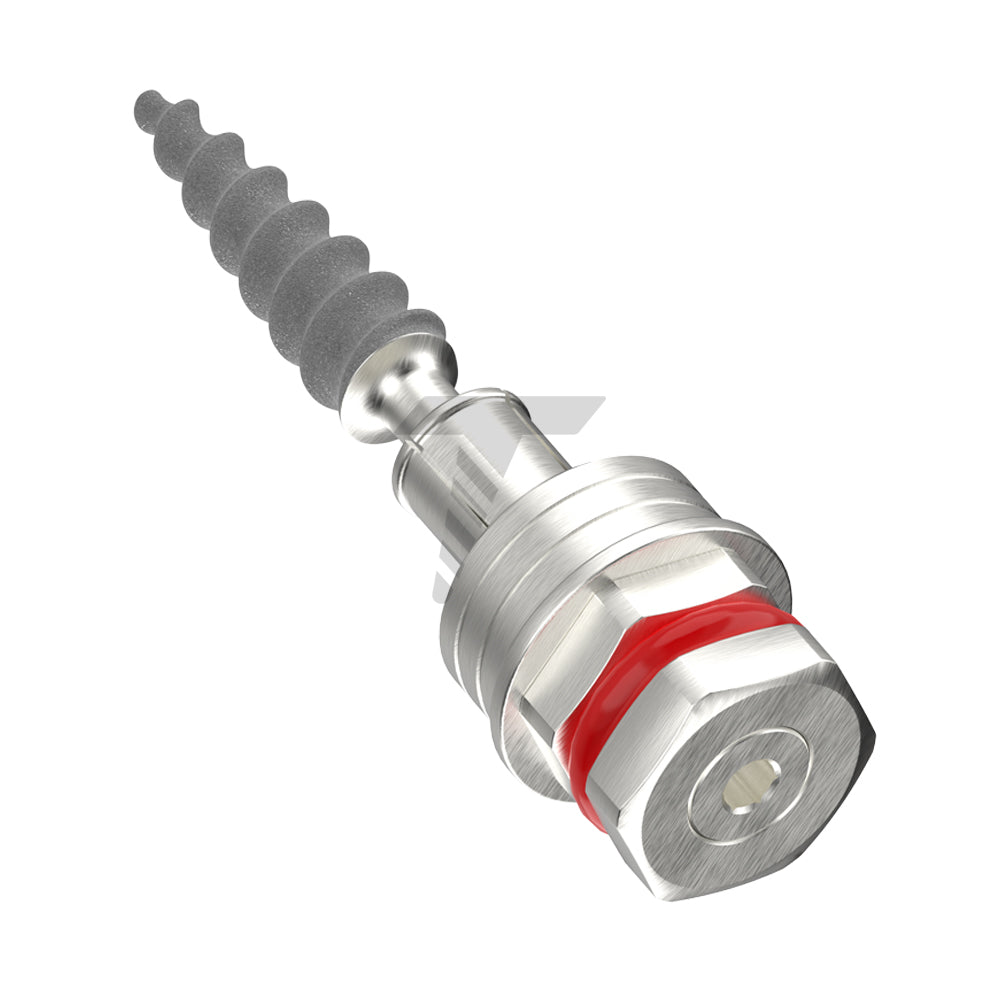

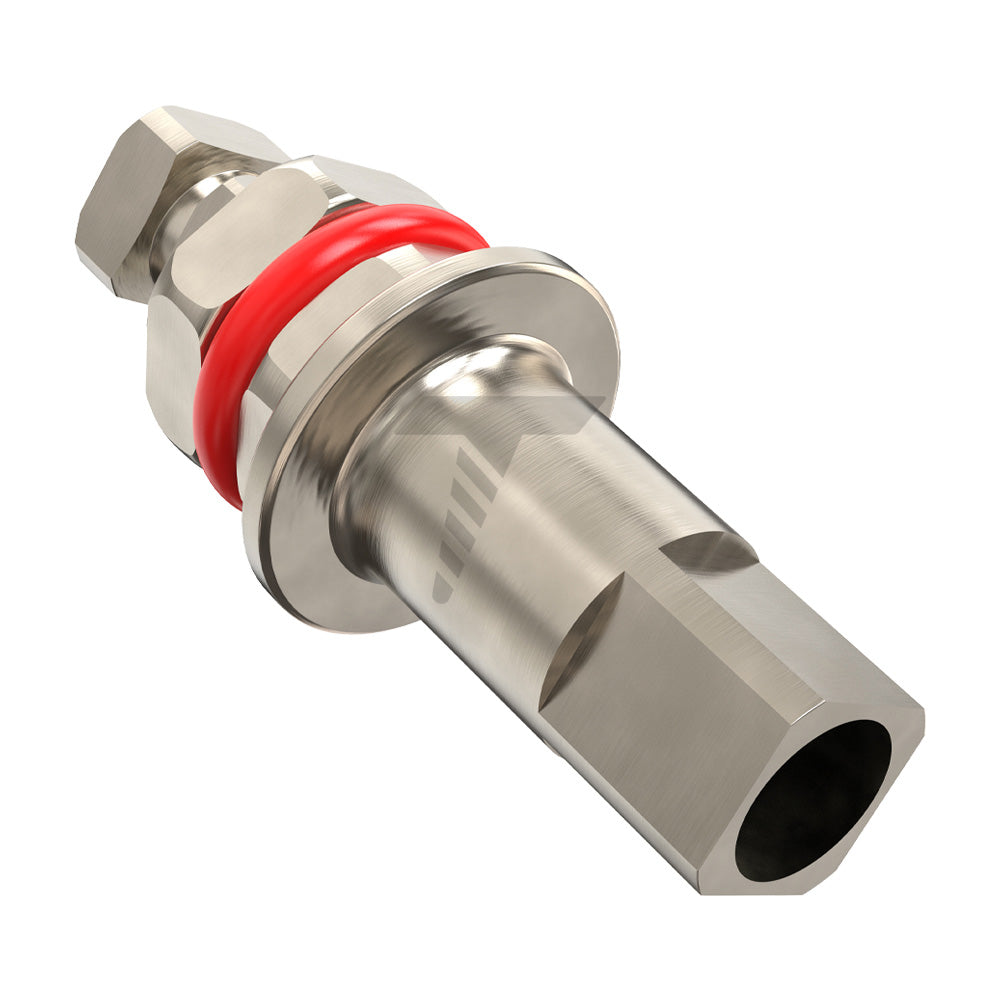

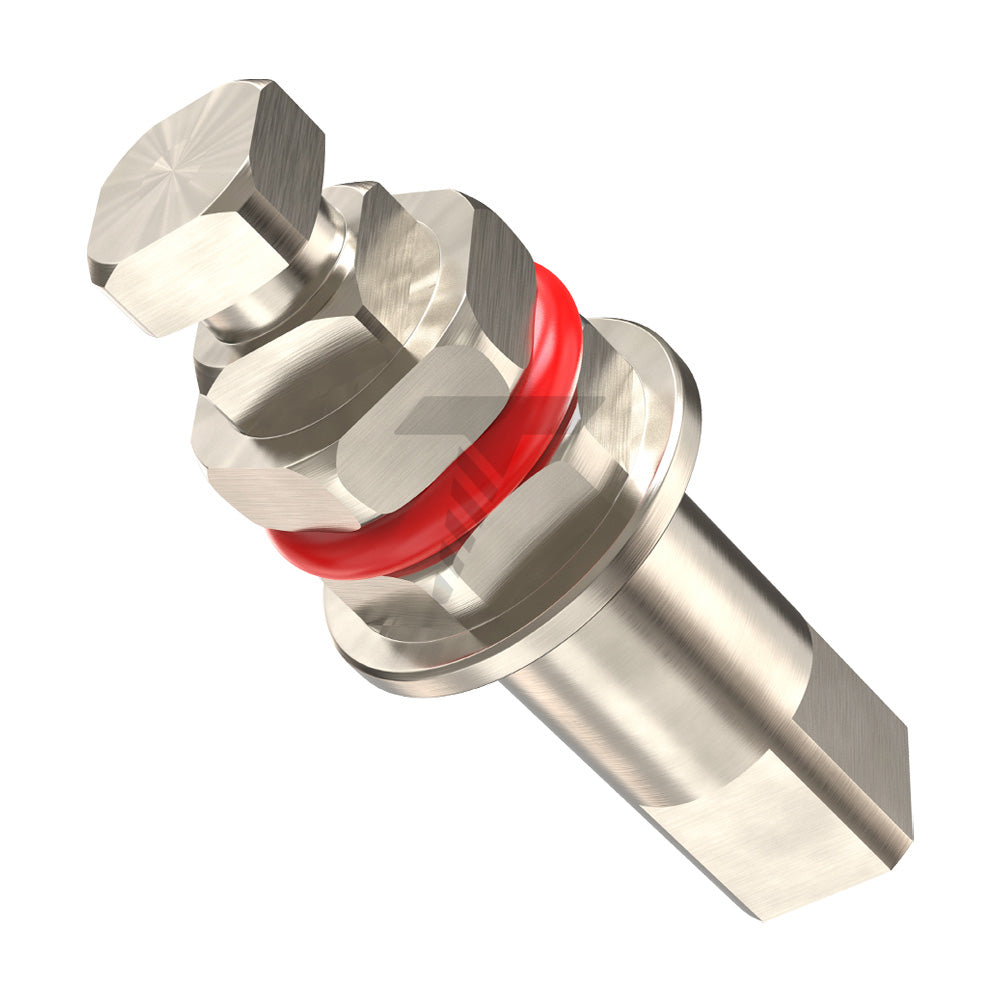

Flexible Neck Hex Driver

Used for installation of flexible neck one-piece implants.

Fits any ratchet wrench with a connection of Square Ø4.0mm head, or Hexagonal Ø6.35mm head.

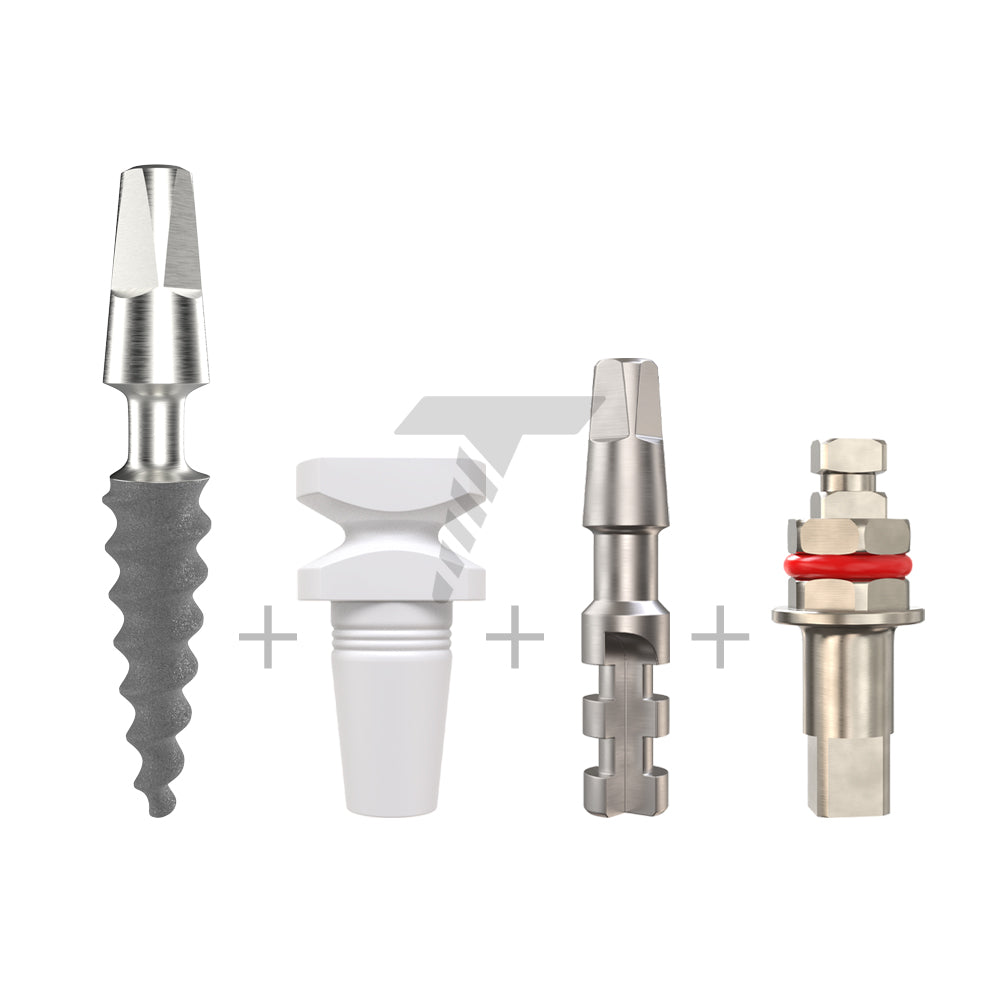

SET COMPONENTS

Impression Coping Transfer For One-Piece ImplantImpression Coping Transfer For One-Piece Implant
Impression Coping Transfer For One-Piece Implant
Sale price$13.00

As low as $11

Driver For Flexible Neck One-Piece ImplantDriver For Flexible Neck One-Piece Implant
Driver For Flexible Neck One-Piece Implant
Sale price$15.00

As low as $13

Flexible Neck One Piece Implant AnalogFlexible Neck One Piece Implant Analog
Flexible Neck One Piece Implant Analog
Sale price$9.00

As low as $7
