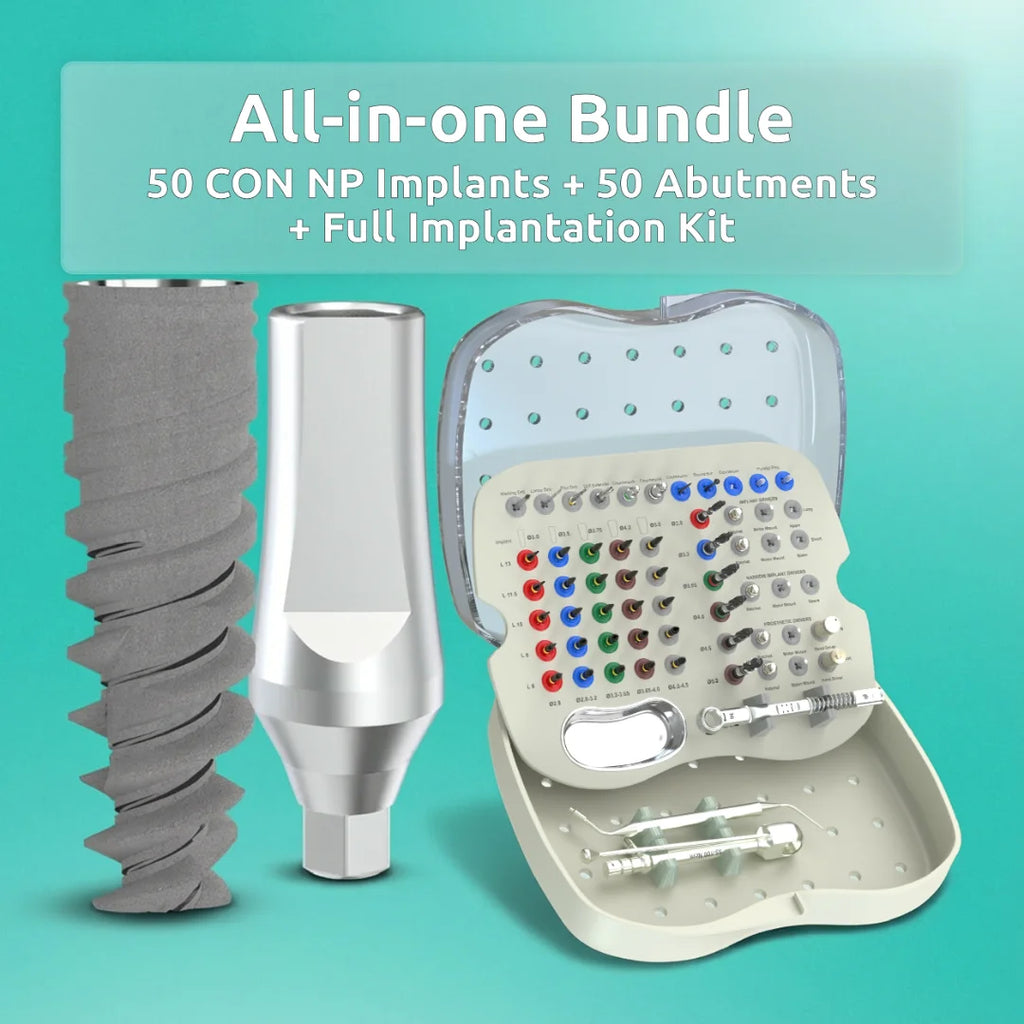

All in One Bundle - 50 Conical NP Implants, 50 Straight Abutments and Full Implantation Kit

NOTICE: Not sending sizes 24 hours from the moment of purchase may cause a shipment of random sizes!

Package Includes - 50 Conical NP Implants, 50 Straight Abutments and one DLC Conical Integral Stopper Drills Full Implantation Kit

# Connection: Conical Connection Hex 2.25mm
# Condition: Sterilized, Double Packaging
# Material: Titanium grade 5 (TI-6AL-4V ELI)
# Surface Treatment: SLA (sandblasted, large grit, acid etched) Surface
# Country of Manufacture: Israel
# Fits leading implant brands such as Nobel Active

This all-in-one bundle is built around the Conical NP implant system and is intended to support predictable placement, strong primary stability, and esthetic outcomes in narrow-platform cases. It combines a tapered conical implant design with compatible prosthetic options and a complete implantation kit for streamlined clinical workflow.

CON NP Implant

The CON NP Implant is designed with a narrow-platform conical connection and an SLA treated surface to support stable integration across a variety of bone conditions. Its tapered spiral body and interlocking conical connection are intended to create a tight seal, supporting soft tissue adaptation and esthetic stability.

The implant geometry is optimized for high primary stability, making it suitable for challenging scenarios such as softer bone quality and extraction sockets. A self-tapping, self-drilling thread profile supports efficient insertion and controlled load distribution. The round apex design helps reduce the risk of trauma near anatomical structures.

Implant diameter and length options are shown below.

Straight Abutment

The bundle includes straight abutments made from Titanium Grade 5, with multiple options available to match different restorative needs. Choose between with or without shoulder designs and select the required length for accurate prosthetic fit and case flexibility.

Abutment type and diameter options are shown below.

Full Implantation Kit

DLC Conical Integral Stopper Drills The implantation kit is designed for accurate, predictable, and controlled implant placement. It features DLC-coated conical integral stopper drills for excellent cutting performance, reduced heat generation, and smooth, low-vibration operation. The kit is organized according to a logical drilling protocol, with clearly labeled instruments for efficient workflow during procedures.

Kit Includes

• 1x Marking Drill - Ø1.9mm
• 1x Lance Drill - Ø1.5mm
• 1x Straight Drill Ø2.0mm - 16.0mm
• 1x Drill Extender
• 2x Countersink Drills - Ø3.75mm X Ø4.2mm, Ø5.0mm X Ø6.0mm
• 1x Lindemann Drill - Ø1.5mm
• 1x Round Bur Ø3.8mm - 30.0mm
• 2x Parallel Pins - 10.0mm, 16.0mm
• 25x DLC Conical Integral Stopper Drills - Ø1.9mmXØ2.7mm, Ø2.1mmXØ3.3mm, Ø2.8mmXØ3.7mm, Ø2.8mmXØ4.0mm, Ø2.8mmXØ4.5mm (Each Diameter Has 5 Lengths - 6.0mm, 8.0mm, 10.0mm, 11.5mm, 13.0mm)
• 6x DLC Straight Drills L16mm - Ø2.8mm, Ø3.2mm, Ø3.65mm, Ø4.0mm, Ø4.5mm, Ø5.2mm
• 2x Hex Drivers RP Ø2.65mm - 10.0mm, 15.0mm
• 2x Motor Mounts RP Ø2.65mm - 20.0mm, 28.0mm
• 1x Hex Driver NP Ø2.25mm - 15.0mm
• 1x Motor Mount NP Ø2.25mm - 28.0mm
• 2x Hex Drivers Ø1.25mm - 7.0mm, 15.0mm
• 2x Motor Mounts Ø1.25mm - 20.0mm, 28.0mm
• 2x Hand Hex Drivers Ø1.25mm - 7.0mm, 15.0mm
• 1x Surgical Torque Ratchet Wrench Ø6.35mm - 10-45Ncm
• 1x Removable Stainless Steel Tray
• 1x Surgical Torque Ratchet Wrench Ø6.35mm - 35-100Ncm
• 1x Depth Probe

Please Select Wanted Sizes:

Straight Abutment

Titanium Fixation Screw is Included!

CON NP Implant

GDT Dental Implants provides a lifetime warranty on eligible dental implants manufactured under the GDT brand, subject exclusively to the terms, conditions, limitations, and exclusions set forth in the official Warranty Policy.

Where applicable and approved by GDT, the warranty is limited to replacement of the qualifying implant or related GDT-manufactured component in cases such as verified manufacturing defect, implant fracture, contamination in the original sealed packaging, or another qualifying product-related failure that meets the policy requirements.

Warranty coverage does not replace clinical judgment, proper case selection, professional handling, or compliance with accepted dental protocols. Please review the full Warranty Policy for complete details regarding eligibility, required documentation, exclusions, regional availability, and claim procedures.
